Features & Details
- Enhanced Pump Flow & Head: Power: 1HP, 230V; Diameter: 4" (for 4" or bigger well casing); Discharge: 1-1/4" NPT. This deep well submersible pump is designed with 6-stage thermoplastic impellers, providing 37GPM max flow and 207 ft max head. It comes with a 33 ft electric cord, making life without modern plumbing a lot easier. Pump out your worries with ease and relax. No challenge is too big for you.
- Upgraded Stainless Steel: The whole frame of our deep well pump is unlike anything on the market. It is made of stainless steel, including the outlet and connecting components. You don't have to worry about it becoming rusted or corroded after being underwater for a long time. With ETL certification and IP68 waterproof grade, the pump can be used for 8-10 years. Stop wasting time! The perfect choice is in front of you!
- Reliable Copper Motor: Are you tired of previous submersible well pumps failing you? Are you ready for consistent satisfaction and quality? The powerful copper motor and high-precision rotor promise long-term stable running. The motor features built-in overheat protection, allowing it to automatically stop when stuck or during abnormal situations to prevent burning. NOTICE: DO NOT use it without water or at a low water level to avoid idle running.

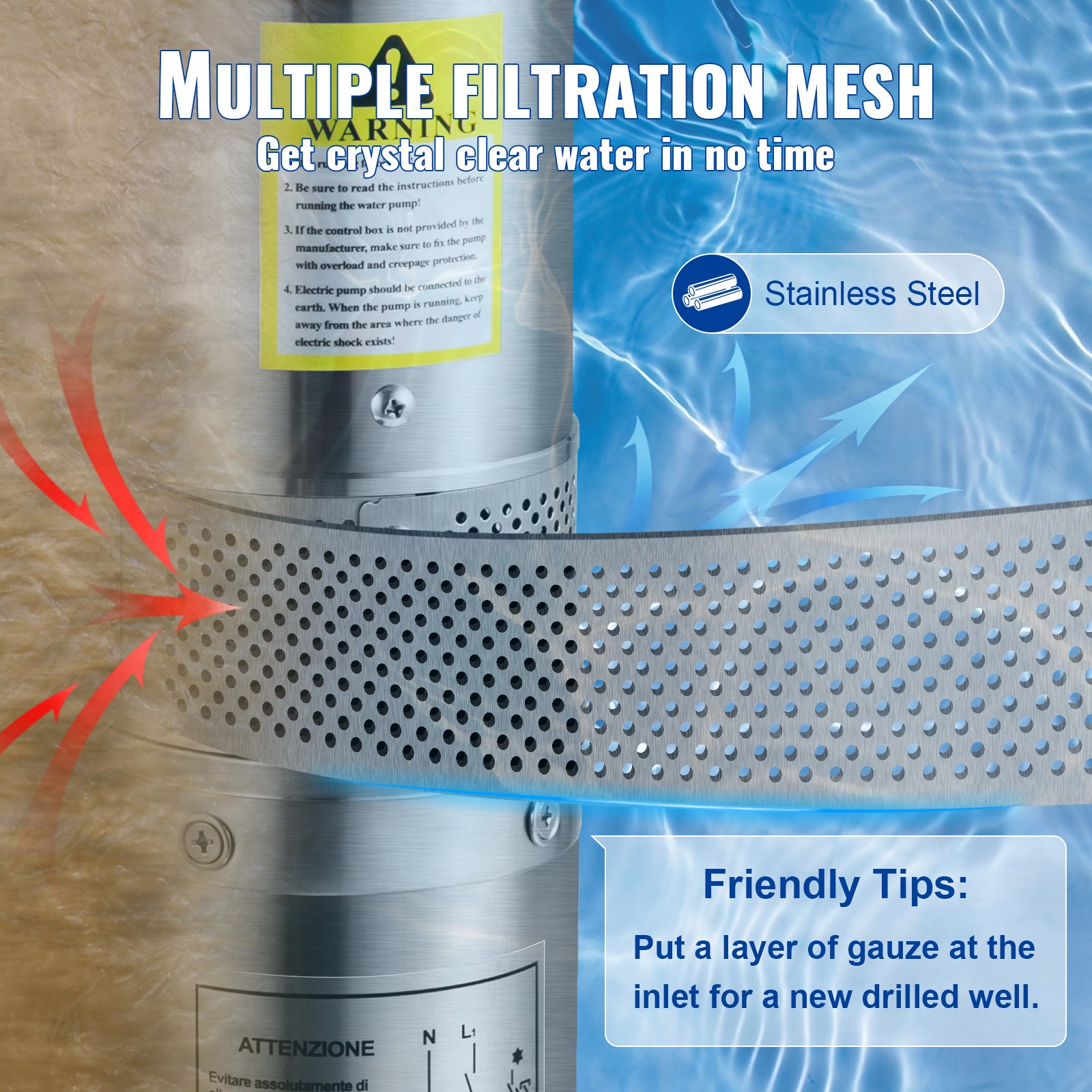

- Trouble-free Check Valve & Filter: This well pump has a built-in check valve to prevent back-flow (an additional check valve is highly recommended). The stainless steel filtration mesh is designed to filter impurities. You can add a layer of gauze in front of the filtration inlet for a new drilled well that may contain excessive granular sediment. Keep impurities out without the headache.
- Use It Anywhere: Whether you want to solve water supply problems for industry, farmland, or home, this deep water well pump is the one you can trust. It works excellently as a garden water source and sprinkler for the kids. You can use the pump for extracting water from deep wells, reservoirs, canals, rivers, and other water-lifting works.
Frequently Bought Together
Reviews 4.3
All reviews are from verified purchases
Average rating based on 6 reviews
Reviews 4.3
All reviews are from verified purchases
See all 6 reviews
About this item

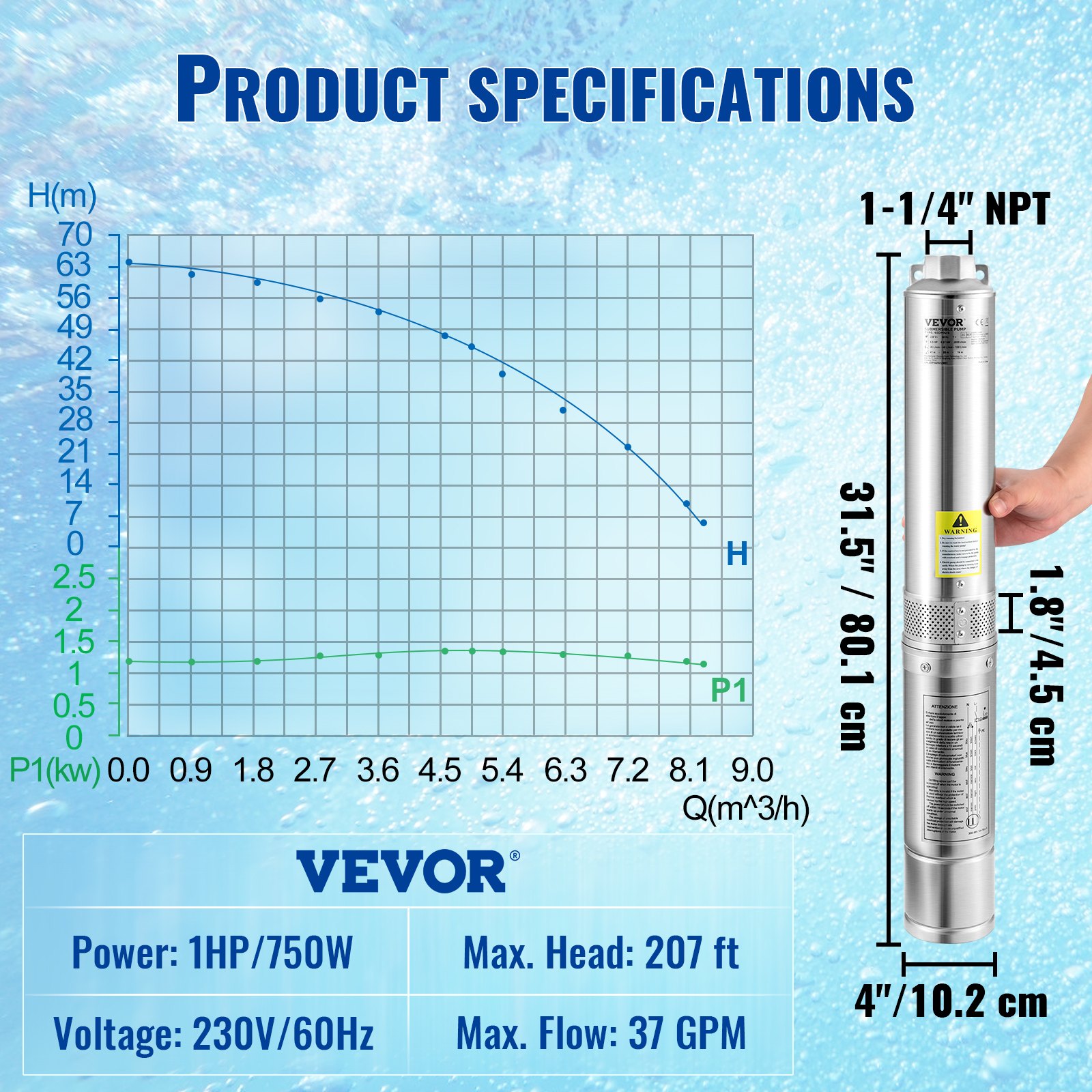

Product specification
- Model
- 4SSM5/6
- Material
- Stainless Steel
- Power
- 1HP/750W
- Voltage
- 230V/60Hz
- Max. Flow
- 37GPM (140L/min)
- Max. Head
- 207 ft/63 m
- Sand Resistant
- <5%
- Pump Diameter
- 4"/10.2 cm
- Discharge Size
- 1-1/4" NPT (3.2 cm NPT)
- Electric Cord Length
- 33 ft/10 m
- Impeller Stages
- 6
- Max. Speed
- 3450 r/min
- Work Temperature
- 32℉-104℉/0℃-40℃
- Certification
- ETL
- Waterproof Grade
- IP68
- Insulation Class
- F
Description

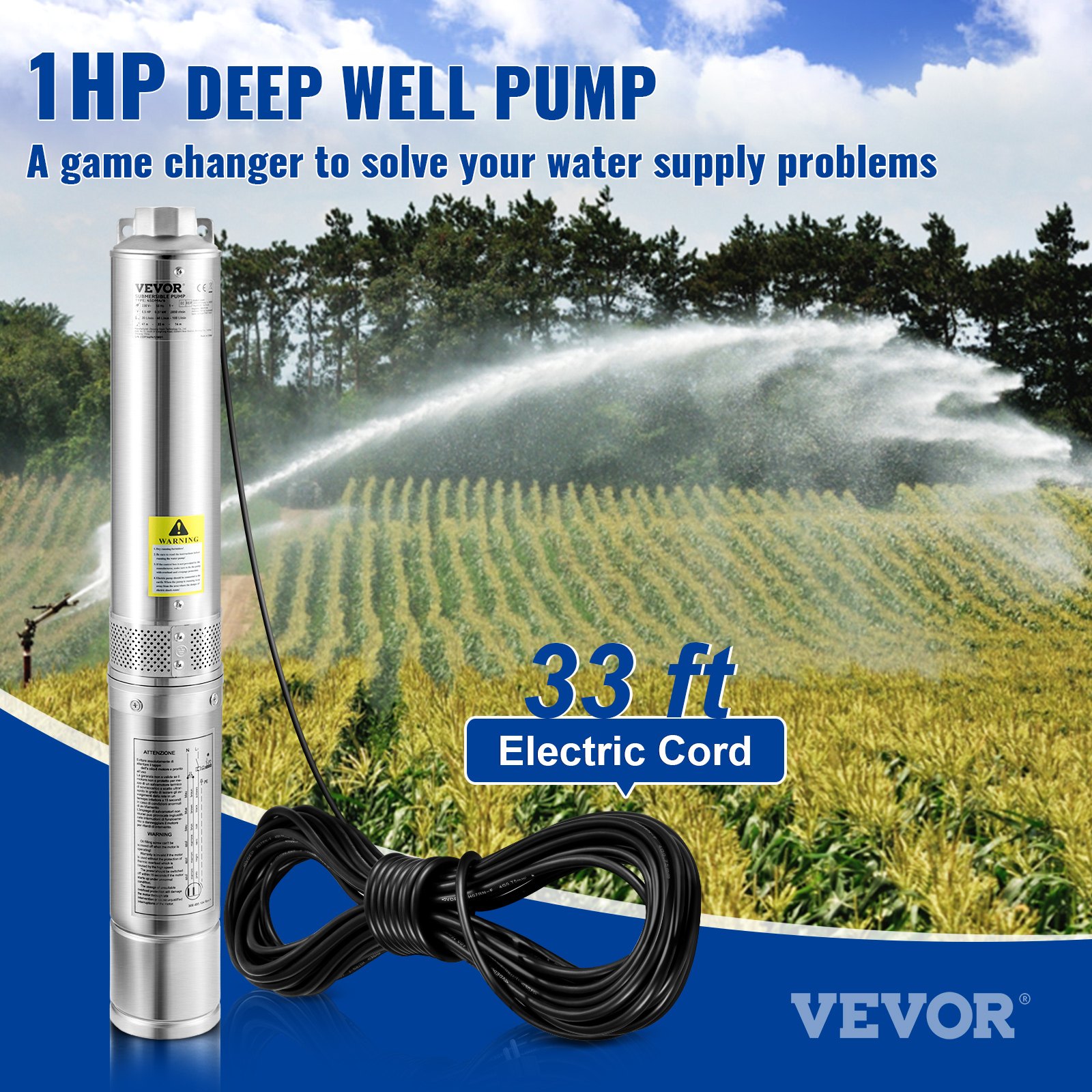

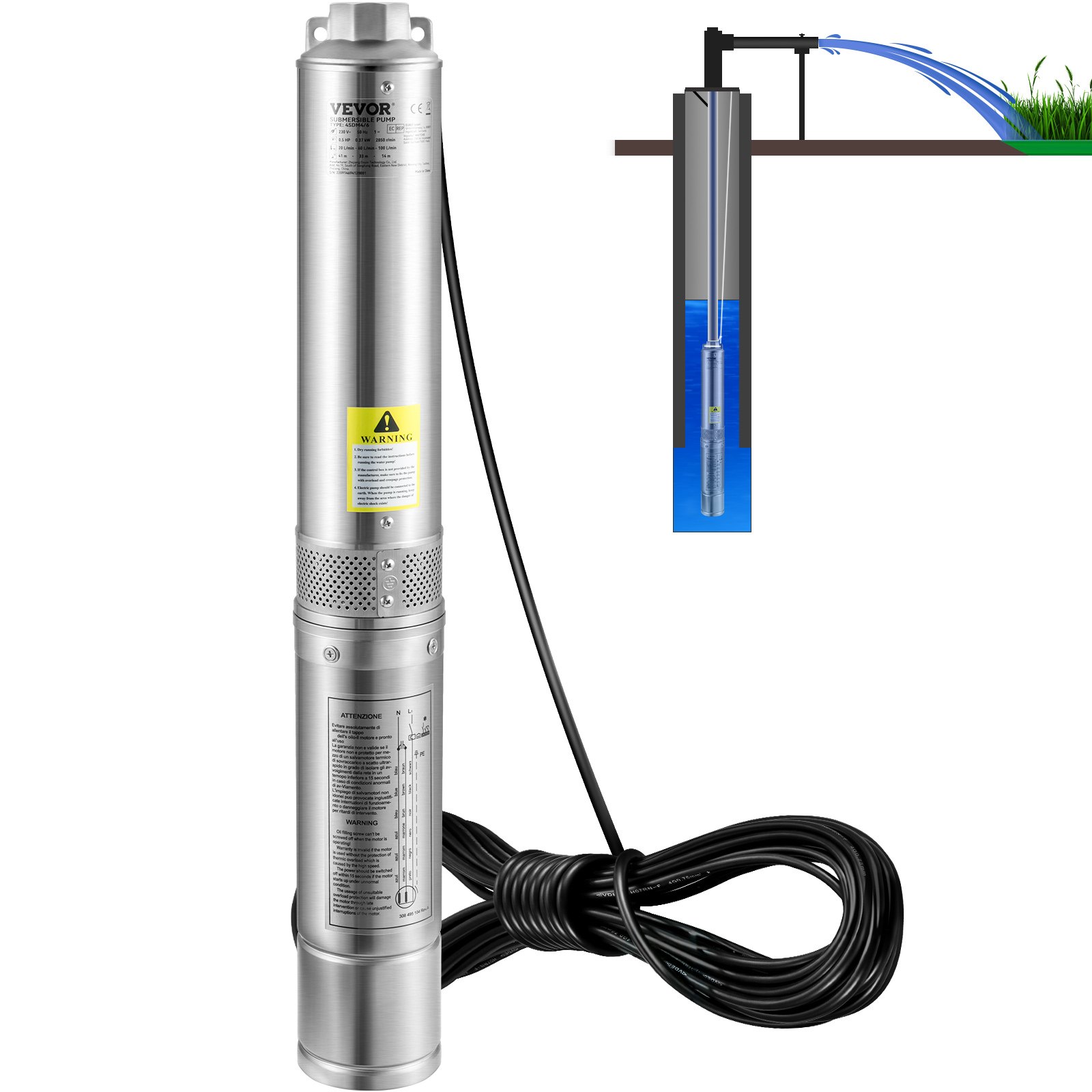

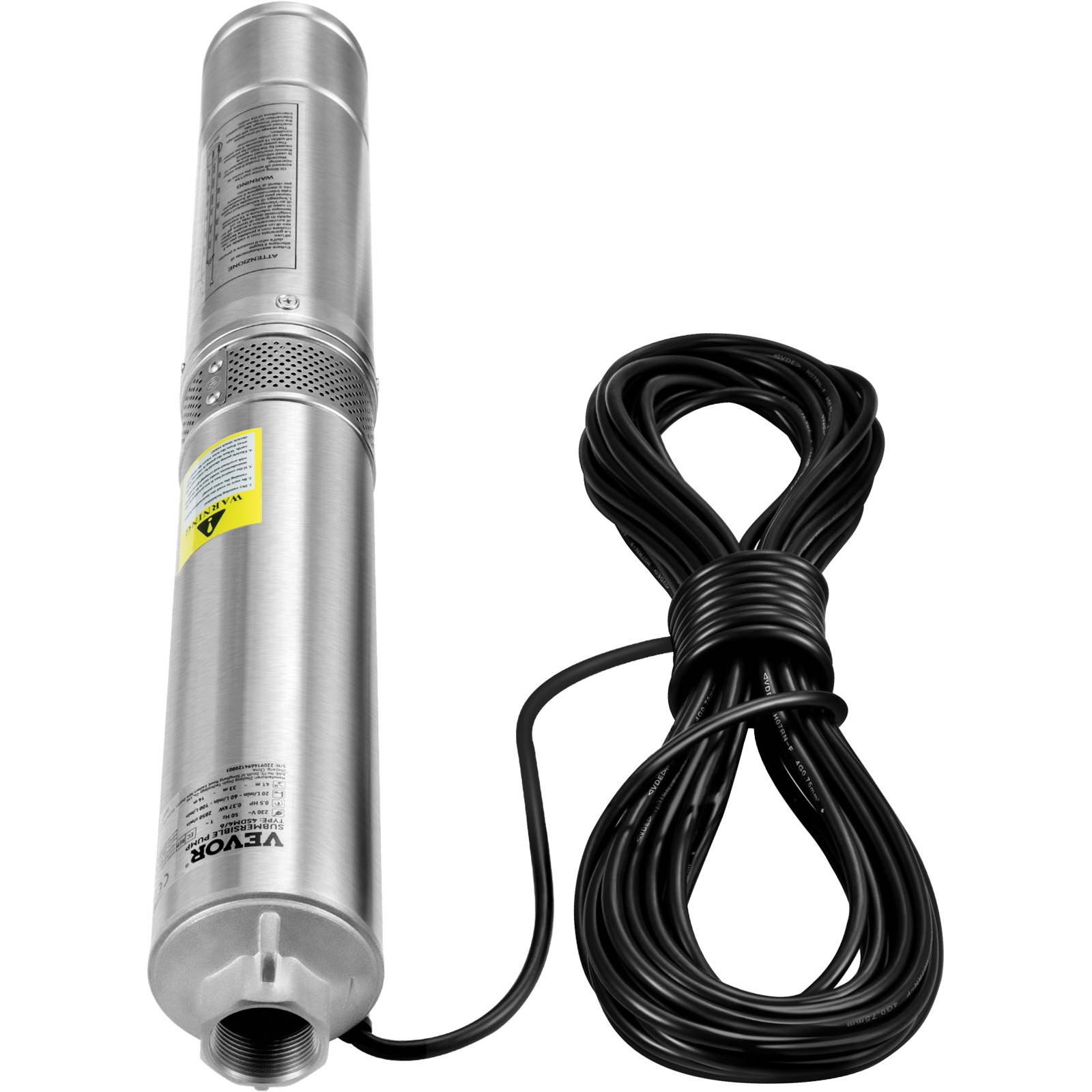

1HP Deep Well Submersible Pump
37 GPM Max. Flow & 207 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
- Enhanced Pump Flow & Head
- Upgraded Stainless Steel
- Reliable Copper Motor
- Trouble-free Check Valve & Filter

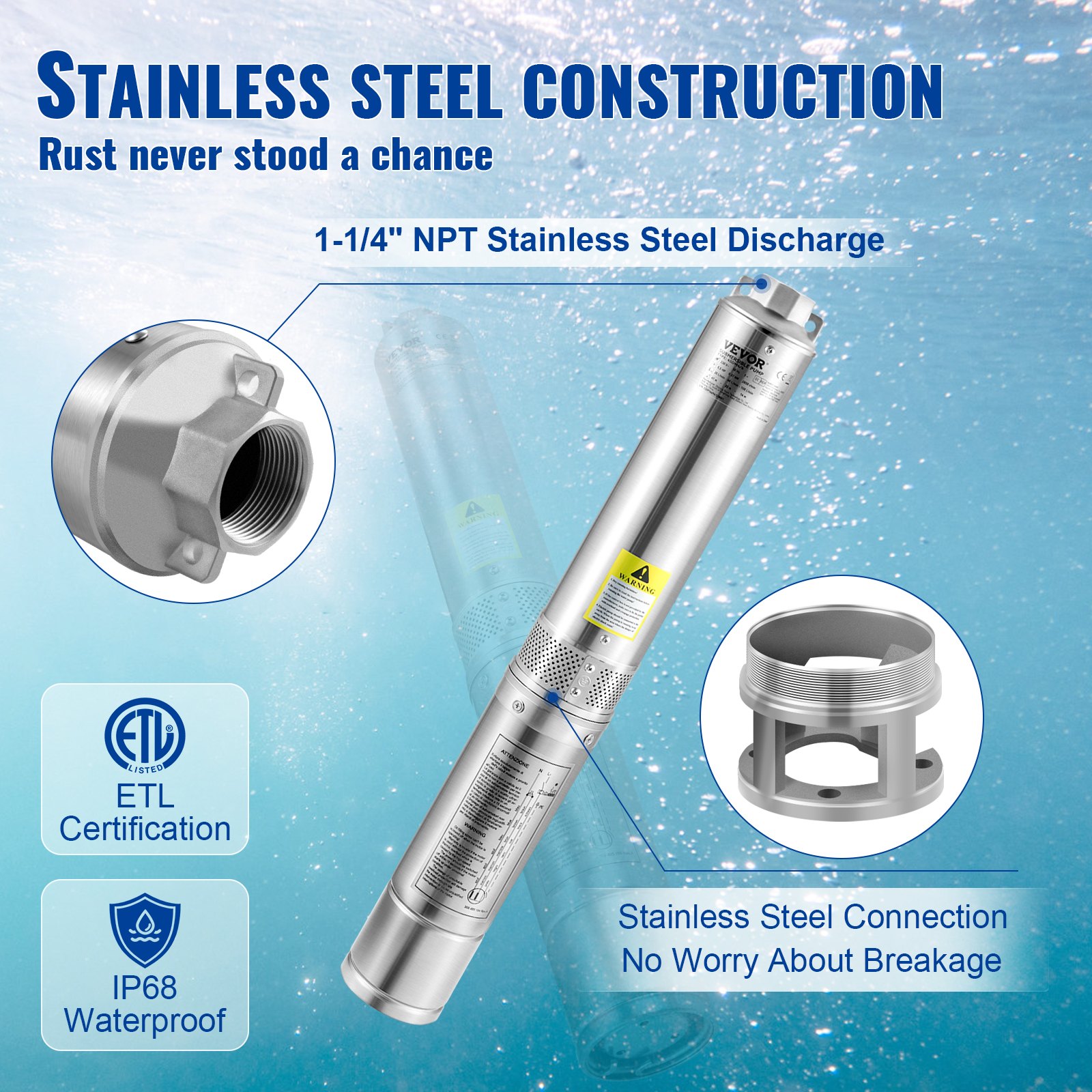

Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.
Install in No Time

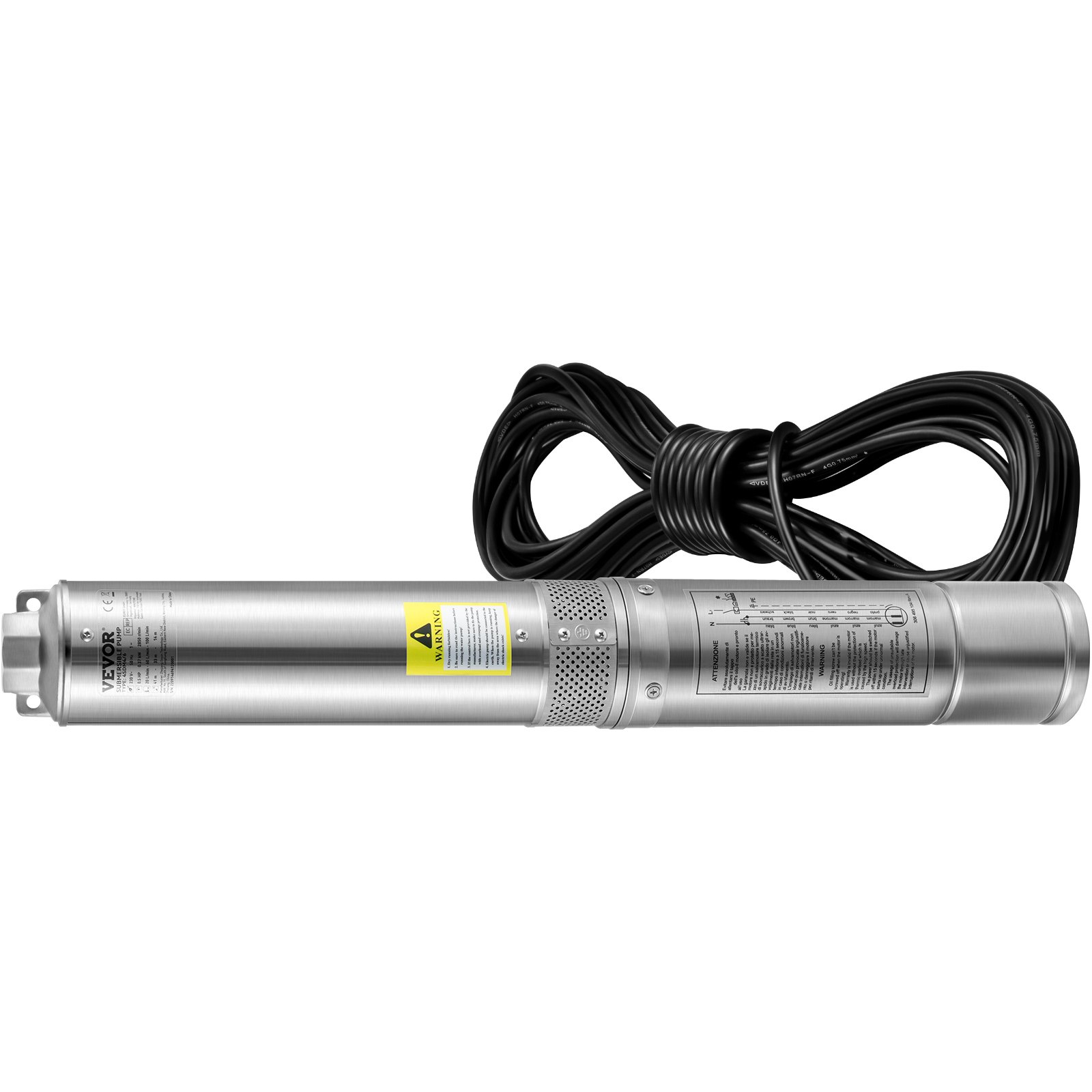

You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.

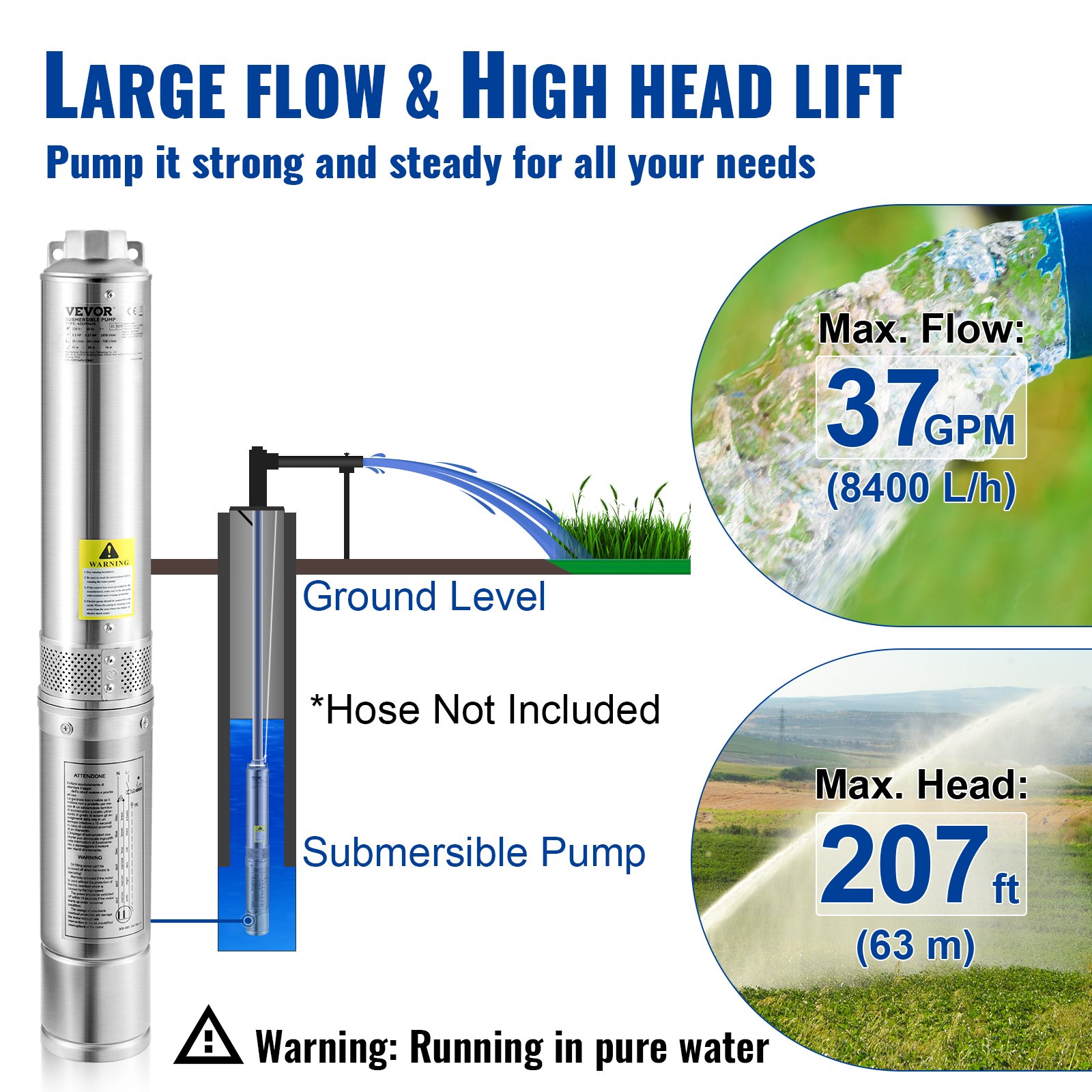

Large Flow & High Head Lift
This 1 HP submersible well pump features a large 37GPM flow and 207 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.

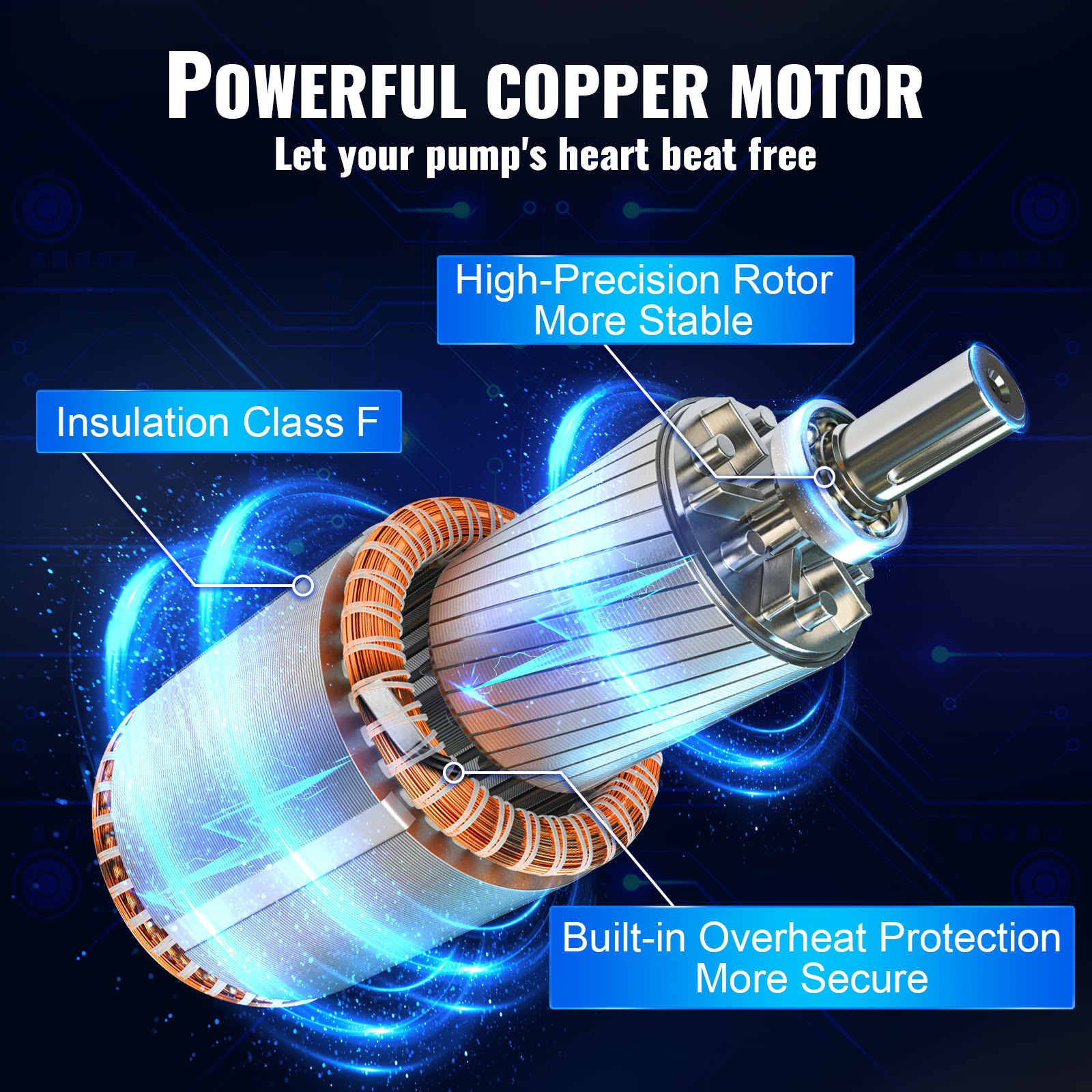

Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overheat protection to prevent overheating and consume less energy.

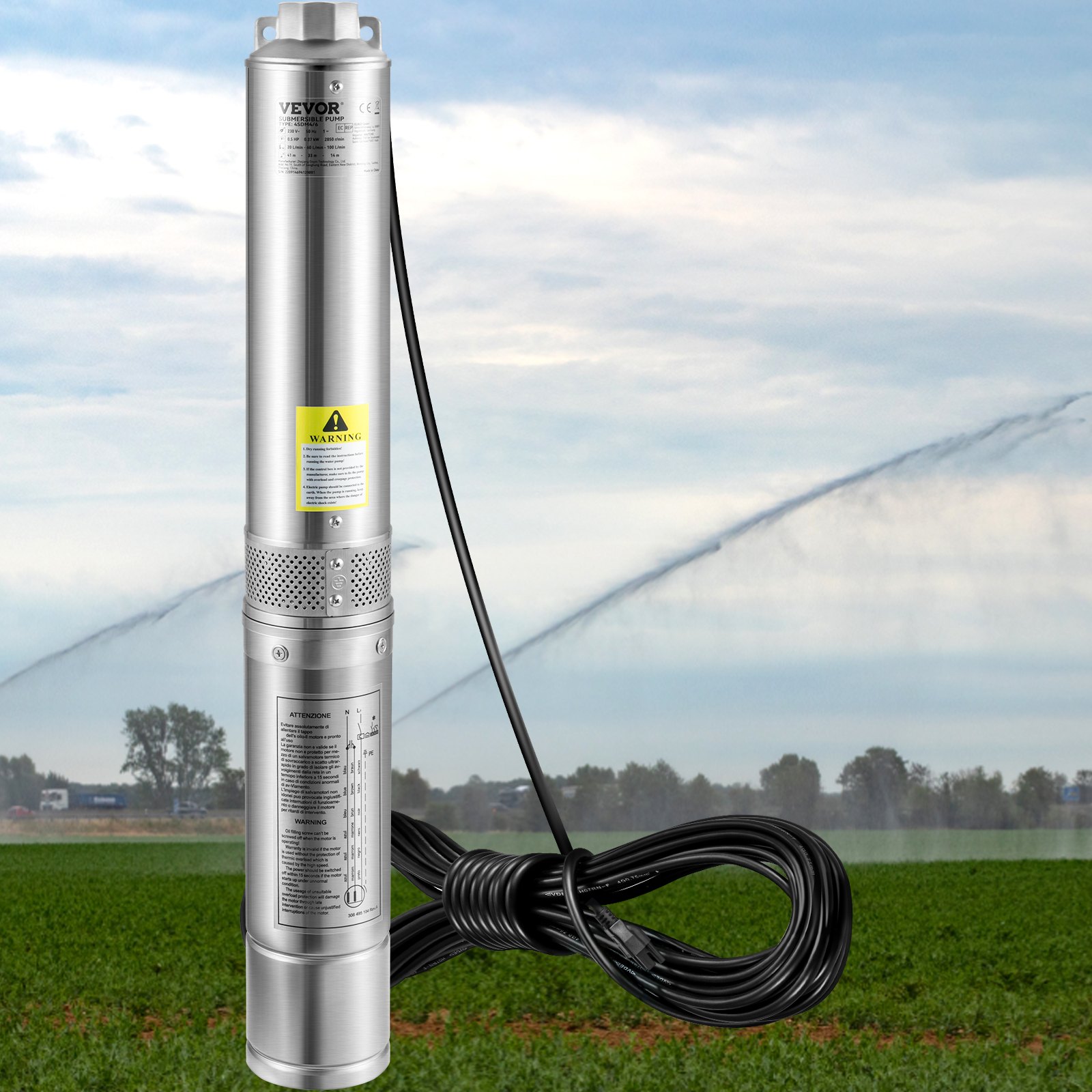

Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.
- Model: 4SSM5/6
- Material: Stainless Steel
- Power: 1HP/750W
- Voltage: 230V/60Hz
- Max. Flow: 37GPM (140L/min)
- Max. Head: 207 ft/63 m
- Sand Resistant: <5%
- Pump Diameter: 4"/10.2 cm
- Discharge Size: 1-1/4" NPT (3.2 cm NPT)
- Electric Cord Length: 33 ft/10 m
- Impeller Stages: 6
- Max. Speed: 3450 r/min
- Work Temperature: 32℉-104℉/0℃-40℃
- Certification: ETL
- Waterproof Grade: IP68
- Insulation Class: F
- 1 x Deep Well Submersible Pump
- 1 x 33 ft Electric Cord with US Plug
1HP Deep Well Submersible Pump
37 GPM Max. Flow & 207 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
- Enhanced Pump Flow & Head
- Upgraded Stainless Steel
- Reliable Copper Motor
- Trouble-free Check Valve & Filter
Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.
Large Flow & High Head Lift
This 1 HP submersible well pump features a large 37GPM flow and 207 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.
Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overheat protection to prevent overheating and consume less energy.
Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.
- 1 x Deep Well Submersible Pump
- 1 x 33 ft Electric Cord with US Plug
- Model: 4SSM5/6
- Material: Stainless Steel
- Power: 1HP/750W
- Voltage: 230V/60Hz
- Max. Flow: 37GPM (140L/min)
- Max. Head: 207 ft/63 m
- Sand Resistant: <5%
- Pump Diameter: 4"/10.2 cm
- Discharge Size: 1-1/4" NPT (3.2 cm NPT)
- Electric Cord Length: 33 ft/10 m
- Impeller Stages: 6
- Max. Speed: 3450 r/min
- Work Temperature: 32℉-104℉/0℃-40℃
- Certification: ETL
- Waterproof Grade: IP68
- Insulation Class: F
Questions and Answers (7)
Este equipo trabaja con energía de 110 y tiene caja de control con arrancador o ya lo trae integrado
Esta bomba de agua tiene un condensador incorporado, 220 V/60 Hz, la potencia de entrada P1 es de aproximadamente 1,4 KW y la corriente es de 6,1 A.
By vevor
Helpful
(
1
)
Buenos dias, cuanto es la maxima reduccion de tuberia que aguanta la bomba ?
Sale con tuberia de 1"1/4, es posible reducirla a 3/4 ?
La bomba es de 1 hp.
Mi pregunta es por que veo que sale con bastante caudal el agua.
La presión máxima de la bomba de agua es de 6,3 bar. Puede cambiar el diámetro de la tubería según sus necesidades. El gran caudal se debe a que la distancia desde la superficie del agua hasta la boca del pozo es pequeña y la bomba de agua funciona en el punto de gran caudal.
By vevor
Helpful
(
0
)
Hola, La bomba modelo 4SSM4/5-2 230V 60Hz, ¿necesita caja de control externa?
Este modelo a plena carga cuantos Amp por fase demanda en operacion normal?
Quedo en espera de sus respuestas.
SALUDOS
Esta bomba tiene un condensador integrado y no requiere una caja de control externa. Se puede usar enchufándola. 2. La corriente por fase es de aproximadamente 6,1 A.
By vevor
Helpful
(
0
)
Hola, La bomba modelo 4SSM4/5-2 230V 60Hz , este modelo necesita caja de control externa?
Esta bomba tiene un condensador integrado y no requiere una caja de control externa. Se puede usar enchufándola. 2. La corriente por fase es de aproximadamente 6,1 A.
By vevor
Helpful
(
0
)
Hola, es necesario un controlador externo para la bomba , o el cable va directo al toma corrientes ?
Gracias
Esta bomba es un modelo empotrado, el cable se puede utilizar directamente conectándolo a la fuente de alimentación.
By vevor
Helpful
(
0
)
