Features & Details
- Adaptation for Cat. 2-2 Tractors: The hydraulic top link cat. 1-1's rod inlet/outlet diameter: 3/8 in; Min retracted length:19-11/16 in(500 mm); Stroke length: 8-5/16 in (211 mm）; Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.
- High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.
- Enhanced Hydraulic Power: The hydraulic top link is capable of providing 4 tons of pushing force and 2.4 tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.
- Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.
- Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.
Frequently Bought Together
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
Reviews 0.0
All reviews are from verified purchases
See all 0 reviews
About this item

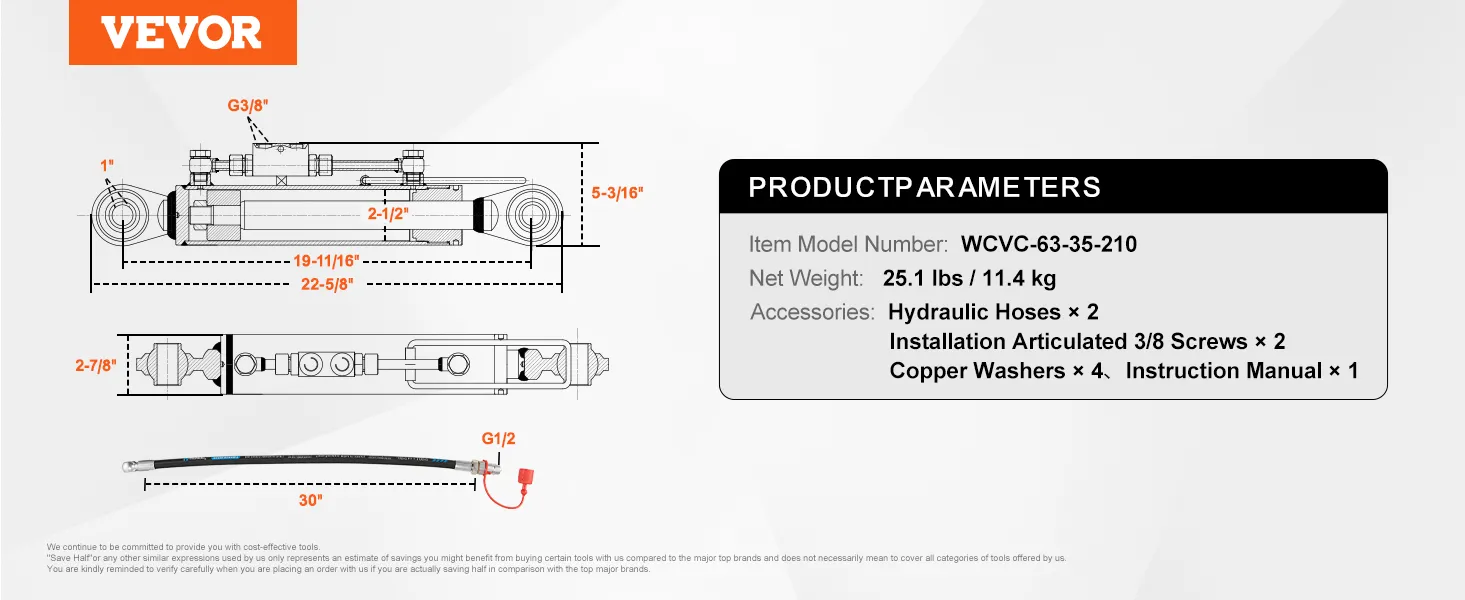

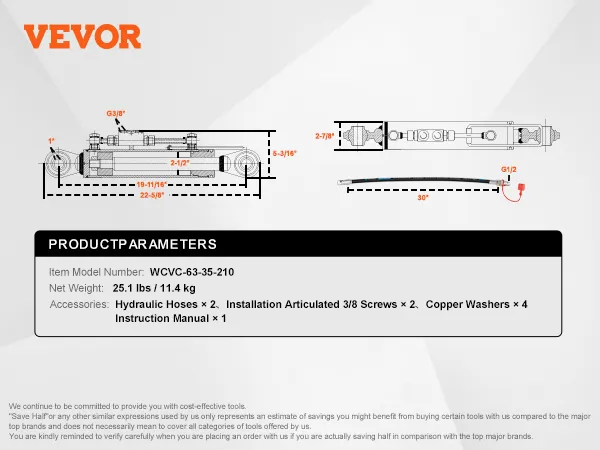

Product specification
- Item Model Number
- WCVC-63-35-210
- Minimum Retracted Length
- 19-11/16 inch (500 mm)
- Stroke
- 8-5/16 inch/211 mm
- Cylinder Diameter (I.D.)
- 2.5 inch/Φ63 mm
- Outer Diameter
- 2-7/8 inch（Φ73 mm）
- Piston Rod Diameter
- 1.4 inch/Φ35 mm
- Connection Hole Diameter
- 1.0 inch/Φ25.5 mm
- Connection Hole Width
- 2.0 inch/51 mm
- Thrust Force
- 4 Tons
- Pull Force
- 2.5 Tons
- Check Valve Inlet/Outlet Port
- G3/8"
- Maximum/Rated Working Pressure
- 20/16 Mpa（2900/2320psi）
- Compatible Equipment
- Class Ⅱ Tractors
- Hydraulic Hose
- (I.D.&L.)
- Fitting Type
- G1/2
- Color and Surface Treatment
- Black Paint
- Main Material
- 45#Steel
- Service Life
- 1-year Warranty
- Net Weight
- 25.1 lbs/11.4 kg
- Product Dimensions
- 22.6 ×5.2 ×2.9 inch/575×132×73 mm
Description
VEVOR Hydraulic Cylinder- Powerful Performance, Precise Extension Control!

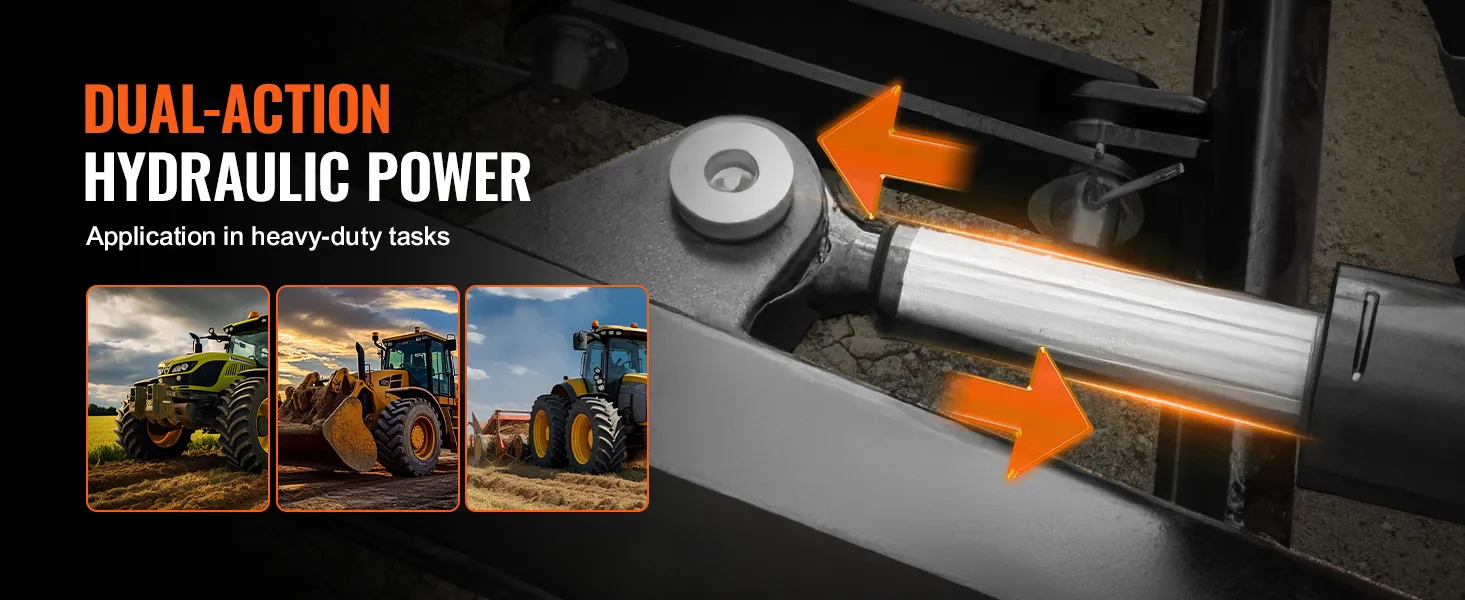

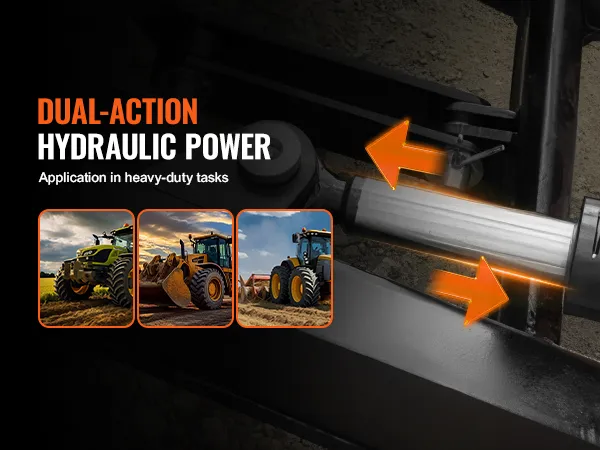

Within the maximum working pressure range of 20/18 MPa, the double-acting hydraulic cylinder can generate 4 tons of pushing force and 2.5 tons of pulling force without the need for mechanical gears/levers.

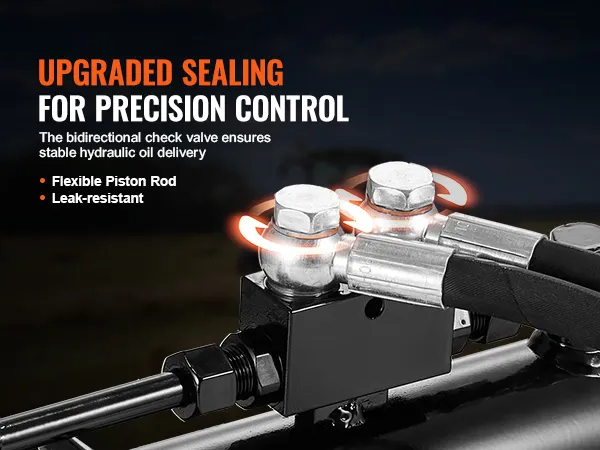

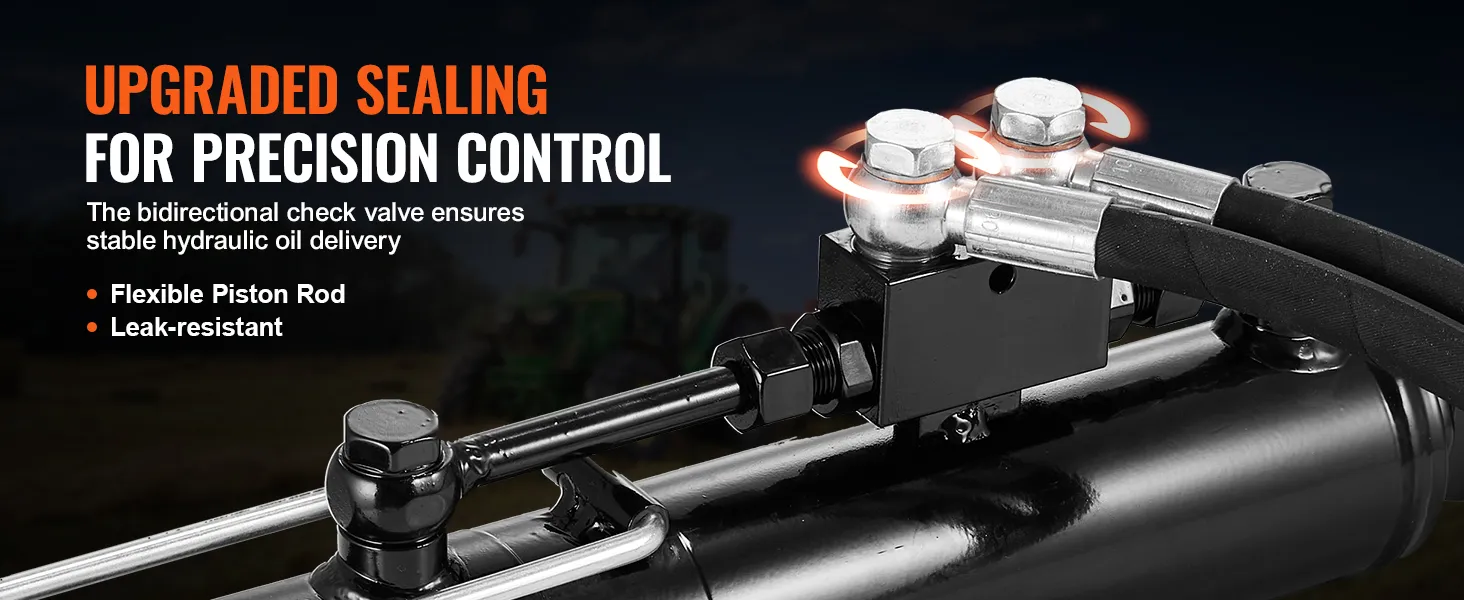

The hydraulic top link Cat.2-2 utilizing bidirectional check valves with locking blocks, it effectively enhances sealing and precision control, preventing hydraulic oil backflow. Even after the pump stops working, the hydraulic cylinder piston rod remains stable under force.
The top link made entirely of 45# steel, it is robust and heavy-duty, resistant to deformation. With added paint coating on the surface, it is corrosion-resistant and rust-resistant, ensuring durability even in harsh environments such as muddy terrain, rainy days, and outdoor high temperatures.

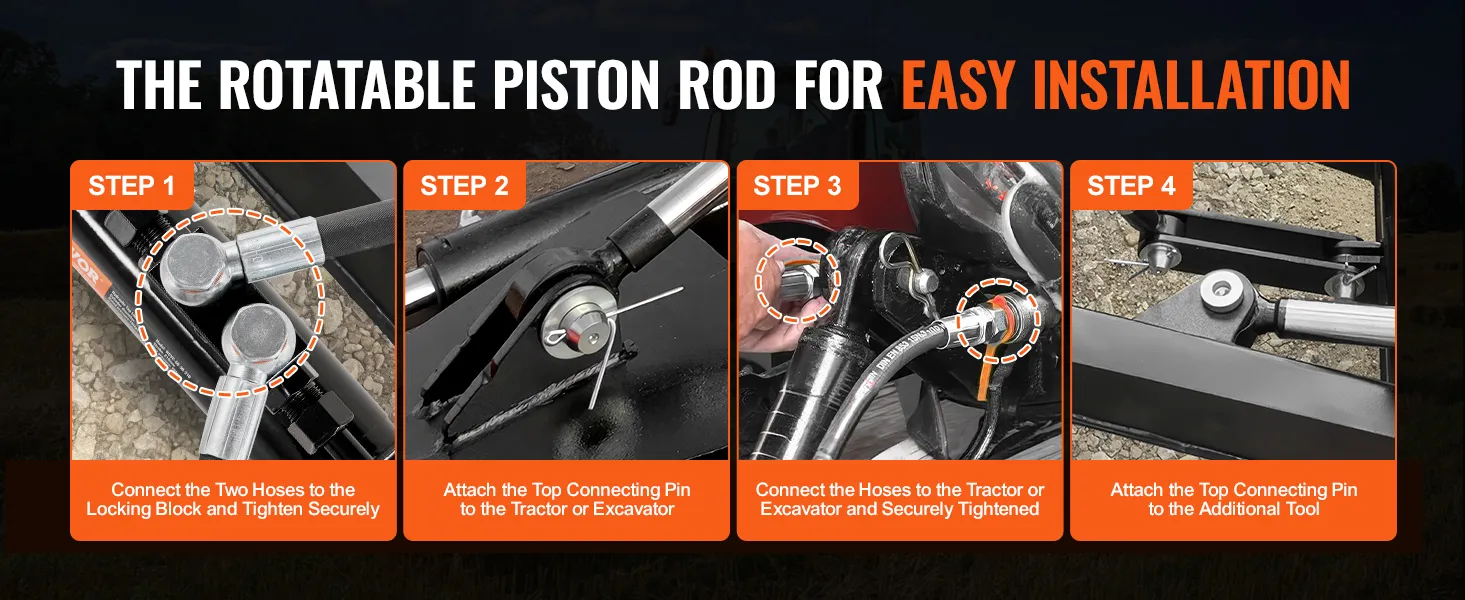

The piston rod of hydraulic top link is specially designed with a rotating feature, allowing for flexible installation on different tools. Note: Hydraulic hose fittings need to be tightened securely to prevent oil leakage.
With a connection hole diameter of 1.0 in/Φ25.5 mm, double acting hydraulic cylinder is compatible with Cat.2-2 tractors, allowing for direct installation on tractor equipment to enhance operational efficiency.
