VEVOR Water to Air Heat Exchanger, 22 x 22 in Finned Tube HVAC Heat Exchanger Coil with Copper Tubes & Aluminum Fins, 190K BTU Output for Outdoor Wood Furnace, Hydronic Heating & Cooling Systems
Deals
4.8 62 Reviews
Mex$ 6,579
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get Mex$100 Off Mex$3,599+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- High Efficiency: this heat exchanger is constructed with copper tubes and aluminum fins to maximize thermal conductivity, delivering efficient heat transfer efficiency and a heating capacity of up to 190k BTU/h
- Large Heat Transfer area: This heat exchanger coil features a 22 x 22 in effective heat transfer area with 266 fins and 3 rows of 3/8 in seamless copper tubes, delivering outstanding performance across a wide range of applications
- Solid and Long-Lasting: Designed as a sturdy air to water heat exchanger, high-hardness epoxy-coated aluminum fins help reduce scale buildup, paired with pure copper tubing for efficient heat transfer, with an operating temperature range of -40–356 °F
- Sealed and Leakproof: Built to perform as a reliable HVAC heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This water to air heat exchanger is an excellent solution for residential use, outdoor wood furnaces, large farm shops, hydroponic grow rooms, commercial heating and cooling, forced-air heating, and hybrid systems
Product specification

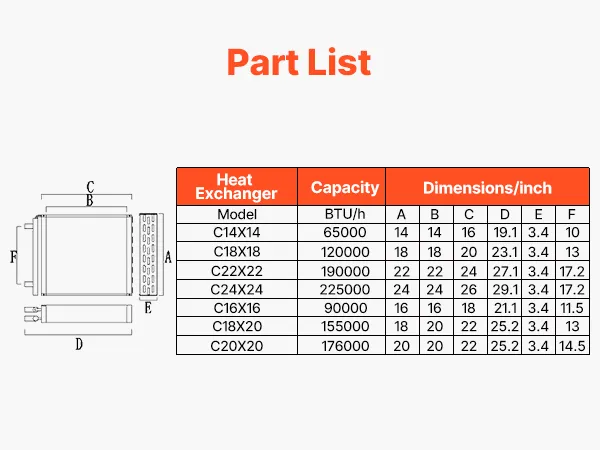

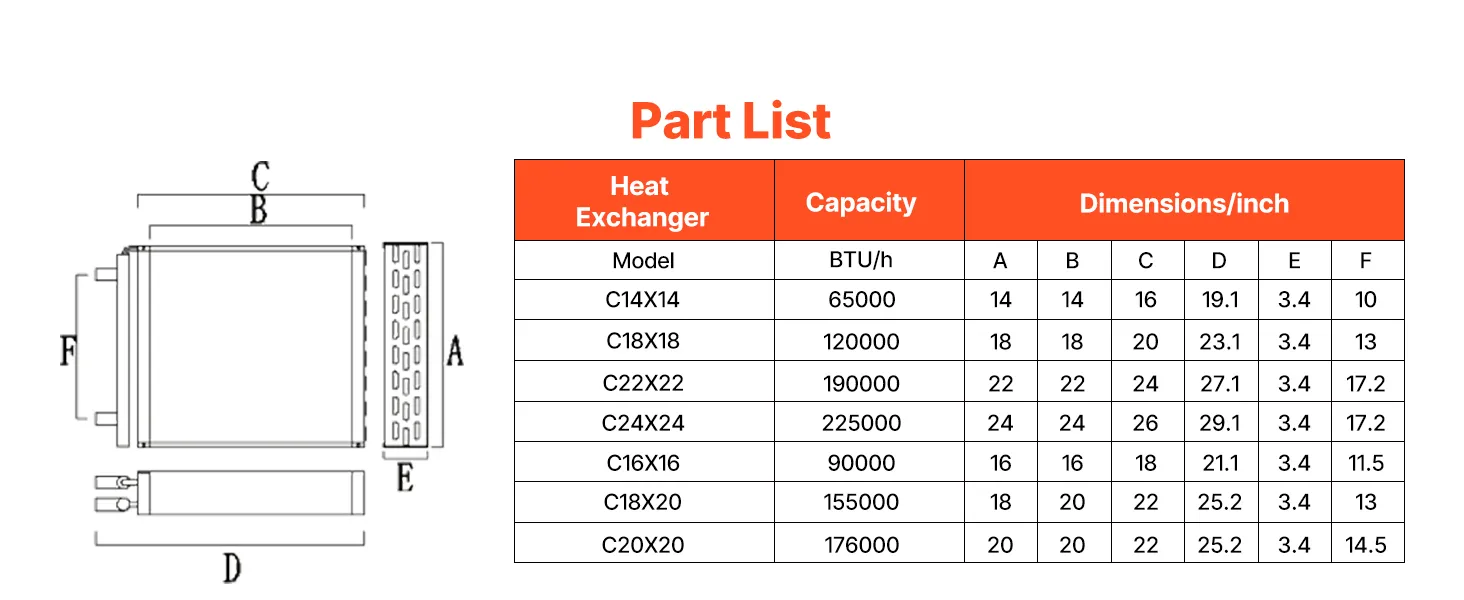

- Item Model Number C22×22
- Heat Capacity ≥190k BTU/h
- Plate Area 22 x 22 in / 559 x 559 mm
- Number of Fins 266
- Max Working Pressure 2.5 MPa / 362.6 psi
- Port Size 1.1 x 1.4 in / 28.6 x 35 mm
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Write a Review
Top Reviews
About this item
Product specification
- Item Model Number
- C22×22
- Heat Capacity
- ≥190k BTU/h
- Plate Area
- 22 x 22 in / 559 x 559 mm
- Number of Fins
- 266
- Max Working Pressure
- 2.5 MPa / 362.6 psi
- Port Size
- 1.1 x 1.4 in / 28.6 x 35 mm
- Net Weight
- 23.4 lbs / 10.6 kg
- Product Dimensions
- 27.4 x 22.0 x 3.5 in / 695 x 560 x 89 mm
Description
Pro-level performance without the pro-level cost
This air heat exchanger is an energy-saving option for both cooling and heating systems.
Key Features
Copper Inlet & Outlet
1.1 x 1.4 in ± 0.04 in / 28.6 x 35 mm ± 1 mm. Please carefully verify that the ports match correctly before purchase.
Seamless Copper Tubes
One-piece seamless construction, withstands high temperature & high pressure, helps resist freeze expansion, & built for long-term use.
Galvanized Steel Plate
Securely fixed, excellent rust resistance, & provides stable continuous operation.
Questions and Answers (2)
Cómo funciona me sirve para calentar el agua de una alberca?
Este producto no puede calentar el agua de una piscina. Utiliza tuberías de agua caliente para expulsar aire caliente; es un tipo de calefactor con ventilador.
By vevor
Helpful
(
1
)
HOLA
EL PRODUCTO ESTA EN MEXICO?
Los productos que aparecen en nuestra página web son fabricados por fábricas de todo el mundo, pero los pedidos de VEVOR se envían desde almacenes locales.
By vevor
Helpful
(
0
)
