Features & Details
- 【RELIABLE QUALITY】- Color: Red; Nominal Diameter: 5/8"; Total Length: 500ft. Keep quick & smooth hot/cold water flows. Made of PEX material, non-toxic, crack-resistant, leak-proof. Perfect for potable water or radiant floor water use.
- 【ROBUST O2 RESISTANT】- External EVOH layer, stop O2 into the tube, protect metal components from corrosion. The heating system's service time can be greatly increased with this kind of tube. Meanwhile, bacteria on water will not easy to breed.
- 【EFFORTLESS INSTALLATION】- Send with a pipe cutter & 10 clamps, easily cut pipes to different length and fix them with clamps. Assemble method: Clamp Connection Systems(Cinch Tool + St. Steel Clamps + Crimp Fittings). This tube is marked with words every 5 ft length.
- 【PREMIUM FLEXIBILITY】- Min. 6" bending radius, easy to bend for different ground situation. Big pressure capacity: 188-217psi at 20℃ and 101-108psi at 95℃. Compatible water temperature: -47℉ to 230℉. Thus, to ensure its good temperature resistant, crack- & leakage-proof.
- 【DIVERSE USE SCENARIO】- Suit for radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, "Sandwich" type radiant heating (between sub floor and finished floor), Snow & ice melting systems etc.
Frequently Bought Together
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
Reviews 0.0
All reviews are from verified purchases
See all 0 reviews
About this item
Product specification
- Type
- PEX Tube(Oxygen Barrier)
- Color
- Red
- Total Length
- 500FT
- Nominal Diameter
- 5/8"
- Inside Diameter
- 0.574"
- Outside Diameter
- 0.750"
- Temperature Range
- -45 to 110℃/ -47℉ to 230℉
- Pressure Rate
- 188-217psi at 20℃; 101-108psi at 95℃
- Min. Bending Radius
- 6"(Industry Standard for 5/8" PEX)
- ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
- UPC listed by IAPMO.
- SDR-9 dimensional standards.
Description
Oxygen-Barrier PEX Pipe Tubing
This 5/8" 500ft PEX pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into the tubing system, thus to anti-rust and stop bacteria breeding. Higher flexibility, good temperature resistant, fast to install, crack-resistant and leakage-proof. Great PEX tube for home or commercial occasions.
- Standards, Certifications & Approvals
- ASTM F876: Standard specification for crosslinked polyethylene (PEX) tubing.
- ASTM F877: Standard specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
- ASTM F2023: Standard test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
- CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
- All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.

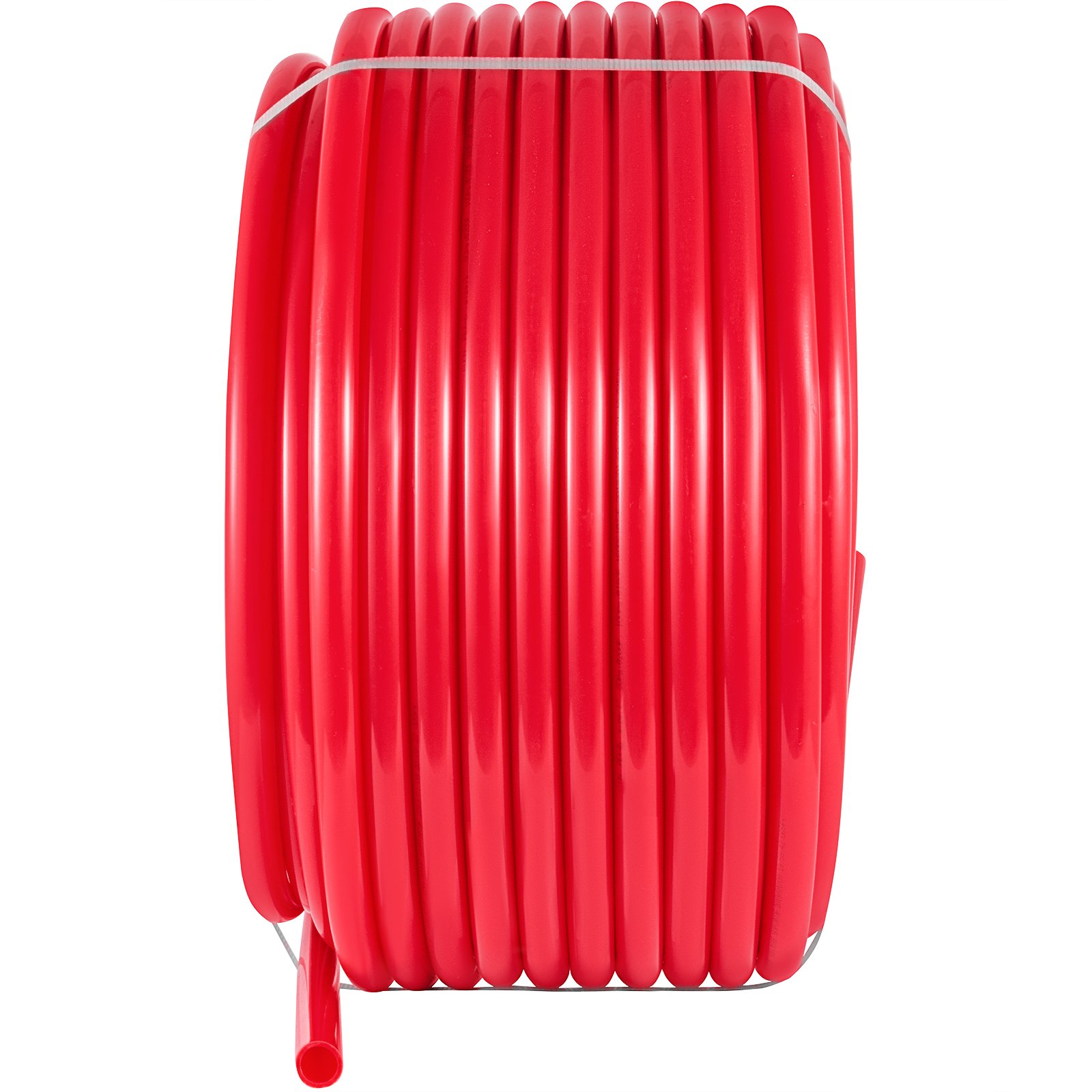

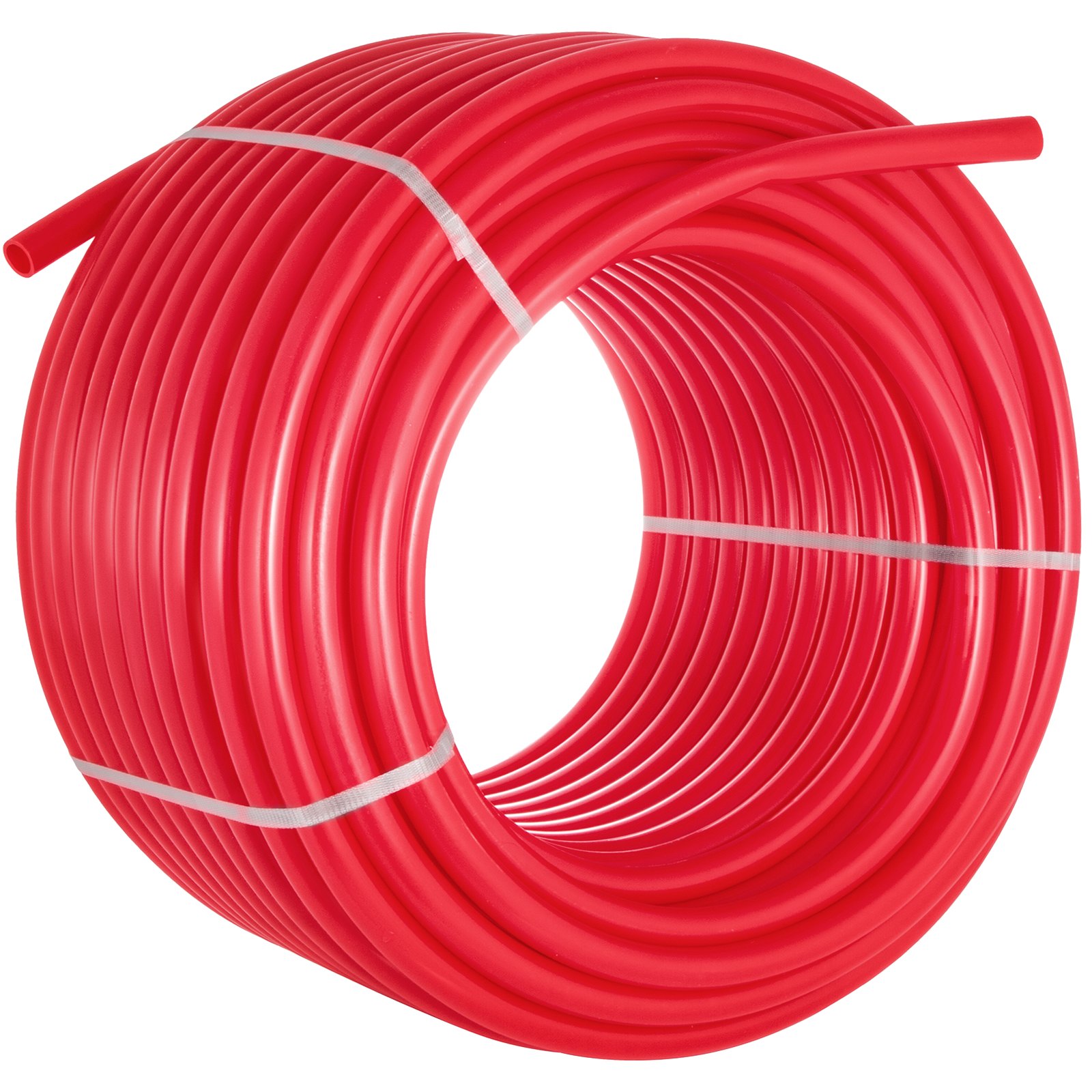

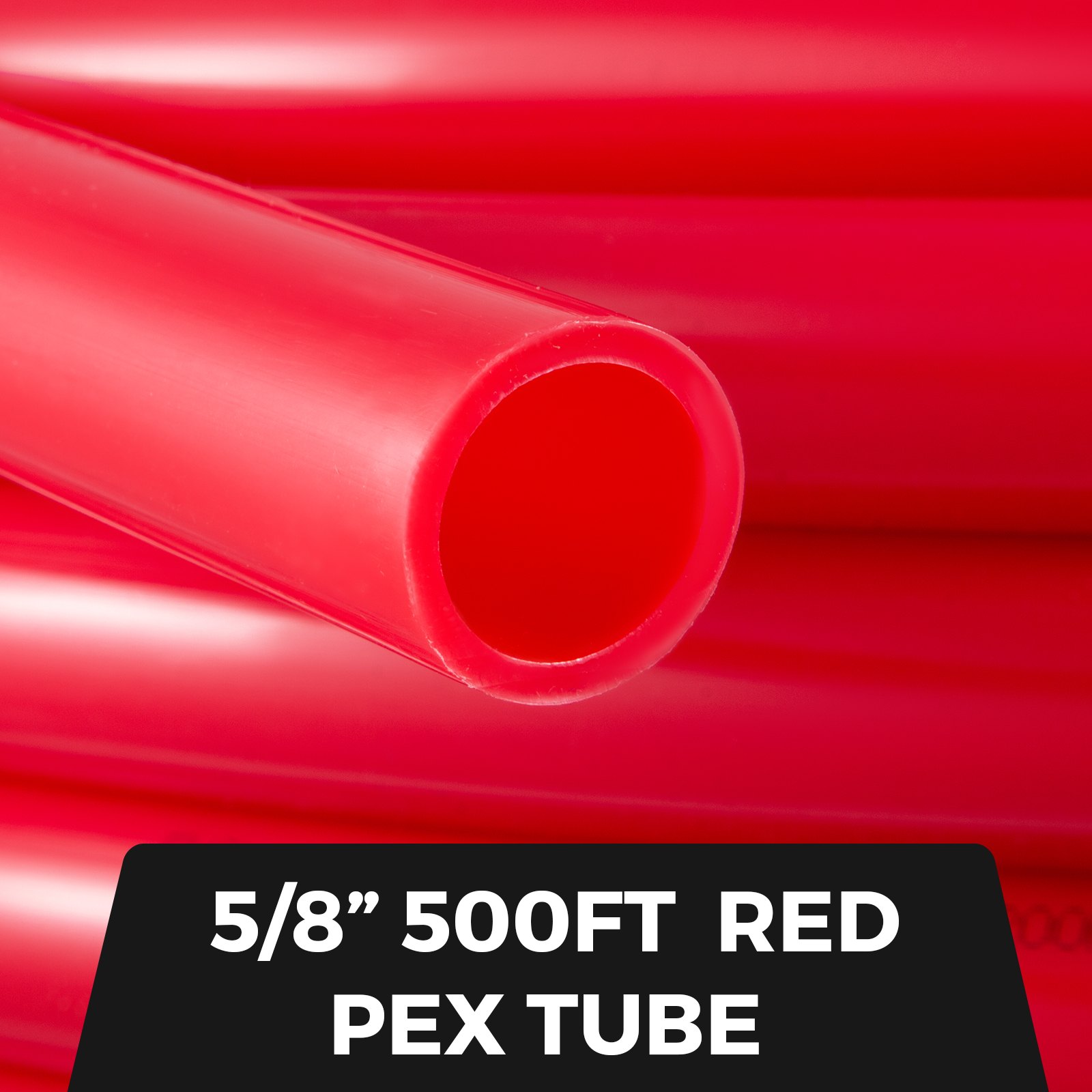

5/8” 500ft PEX Tube
Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 5/8"; Tube Length: 500ft, longer than normal products. This tube is marked with words every 5 ft length.

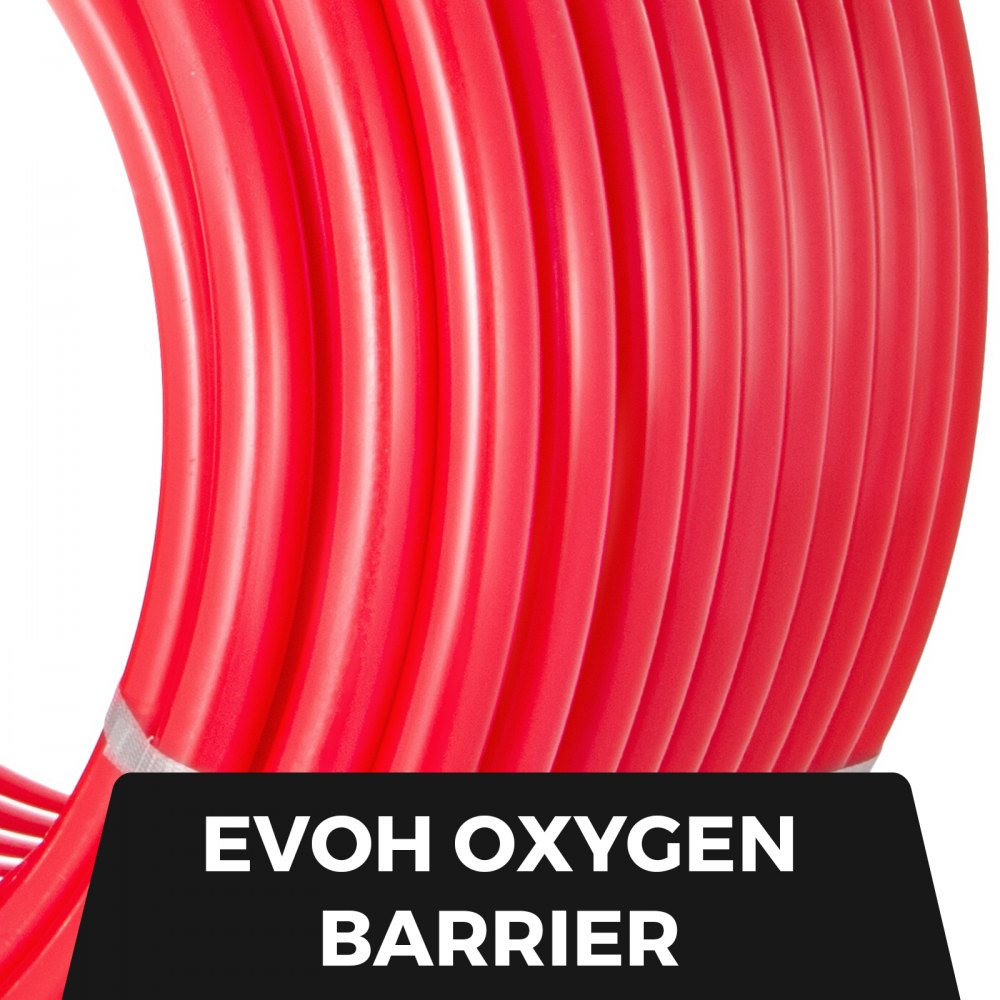

EVOH Oxygen Barrier
Crafted with a layer of EVOH for O2 barrier, keep oxygen and external elements from penetrating or corrode the metal components. Also, prevent the existence of germ in water.

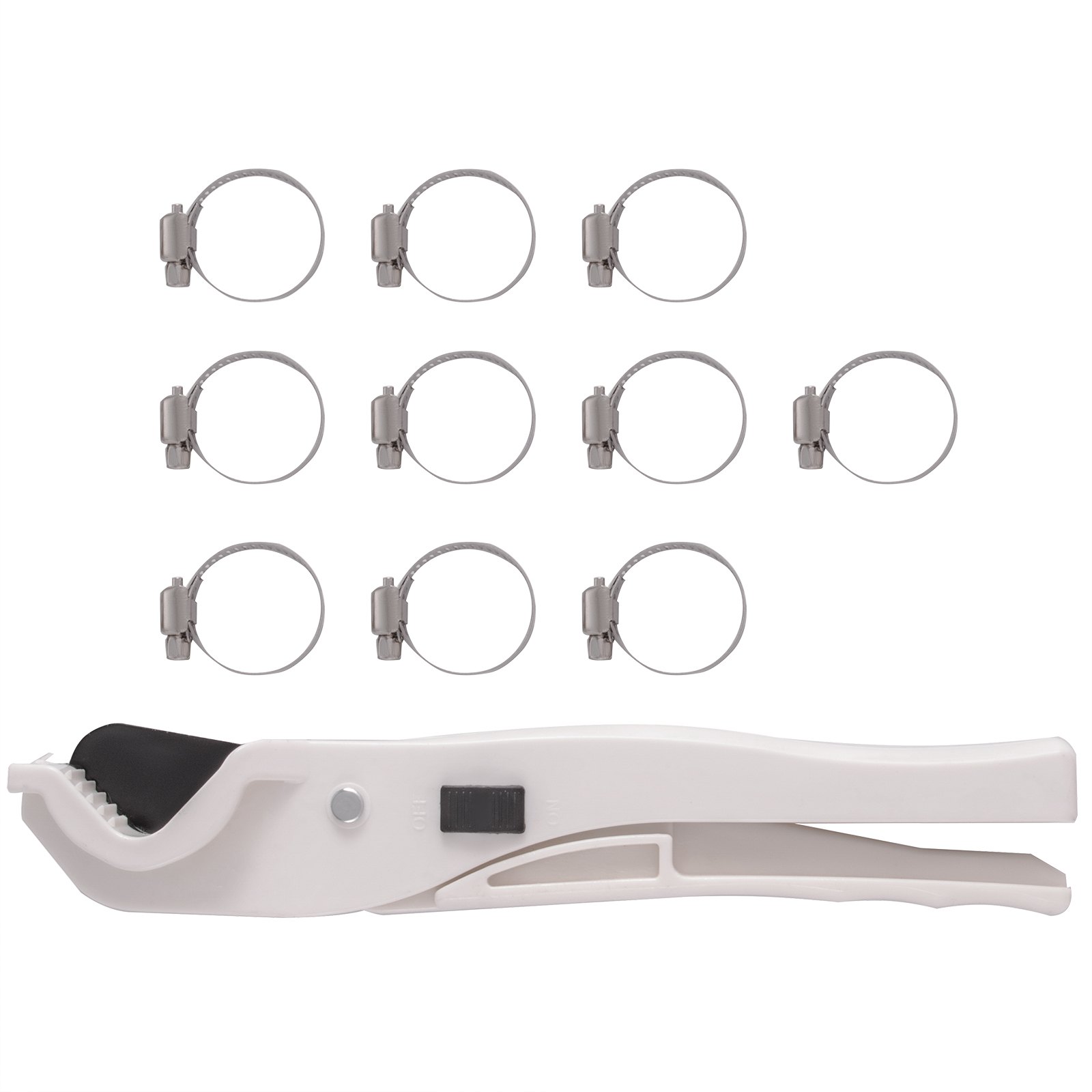

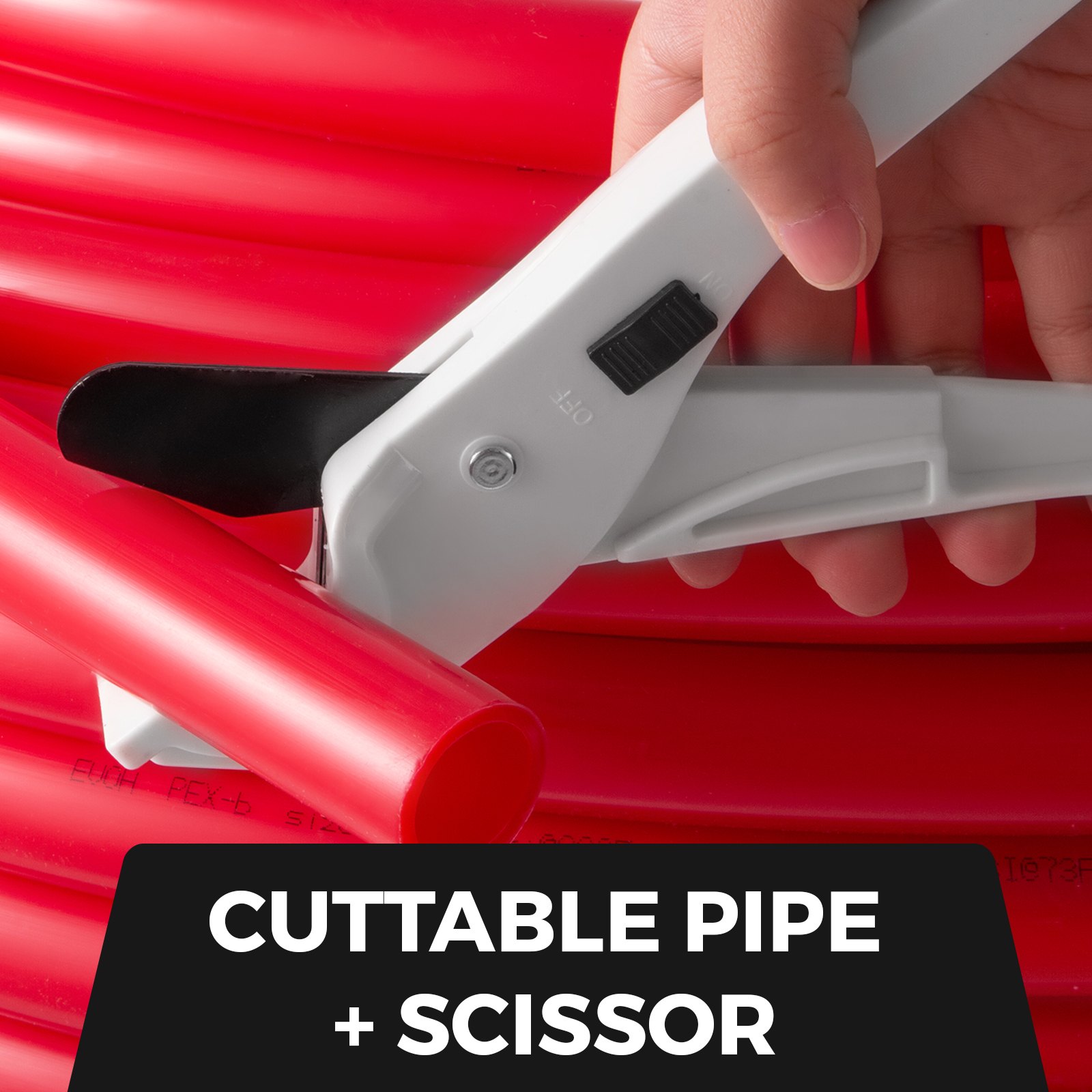

Cuttable Pipe + Scissor
Professional PEX tubing cutter, an integral tool in the easy-to-install pipe connection system. For clean, straight cuts PEX tube size: 1000ft into various length.

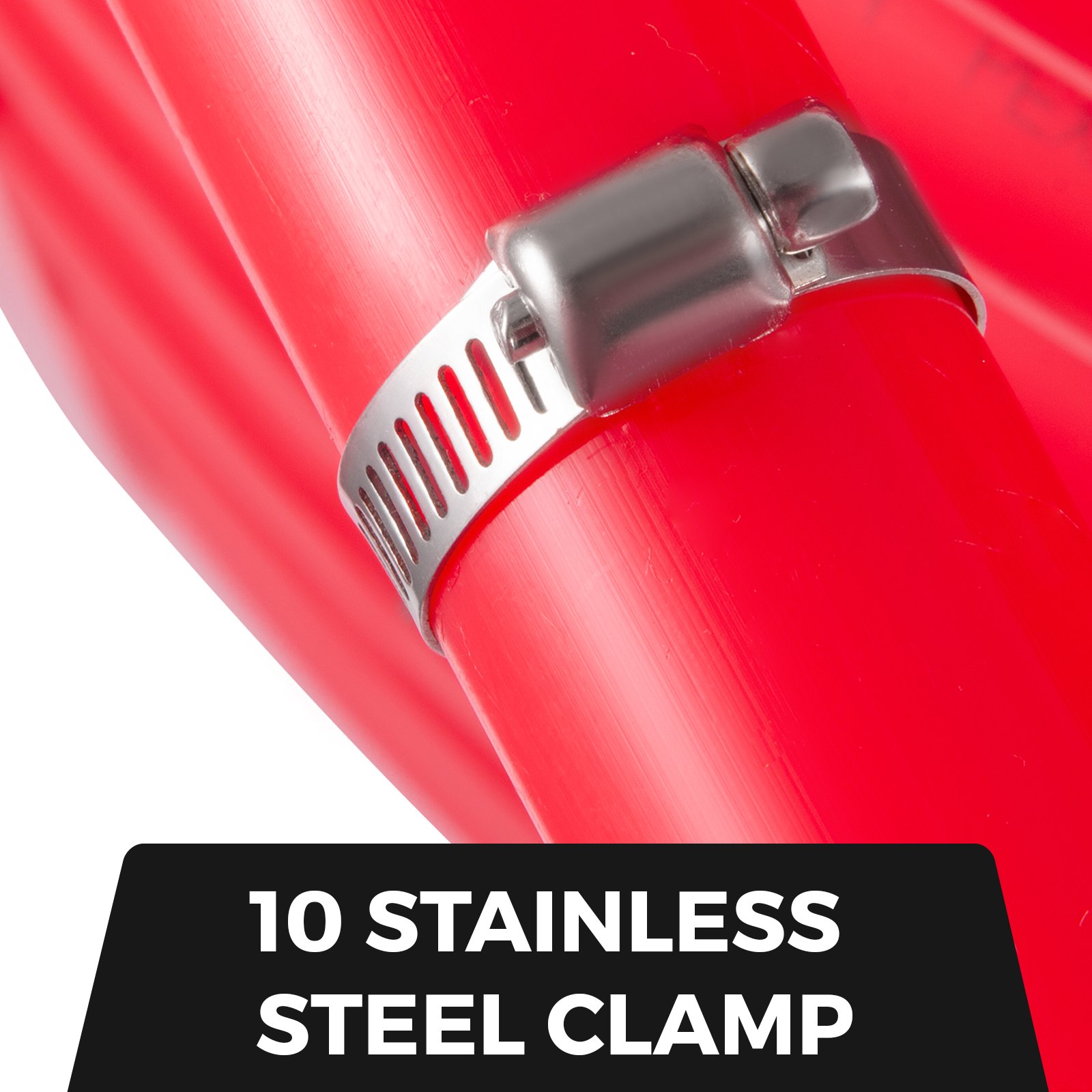

10 Stainless Steel Clamp
Come with 10pcs stainless steel clamp, anti-rust & crack-resistant. Cooperate with screwdriver to help fix tubes and adjust tube tightness freely.

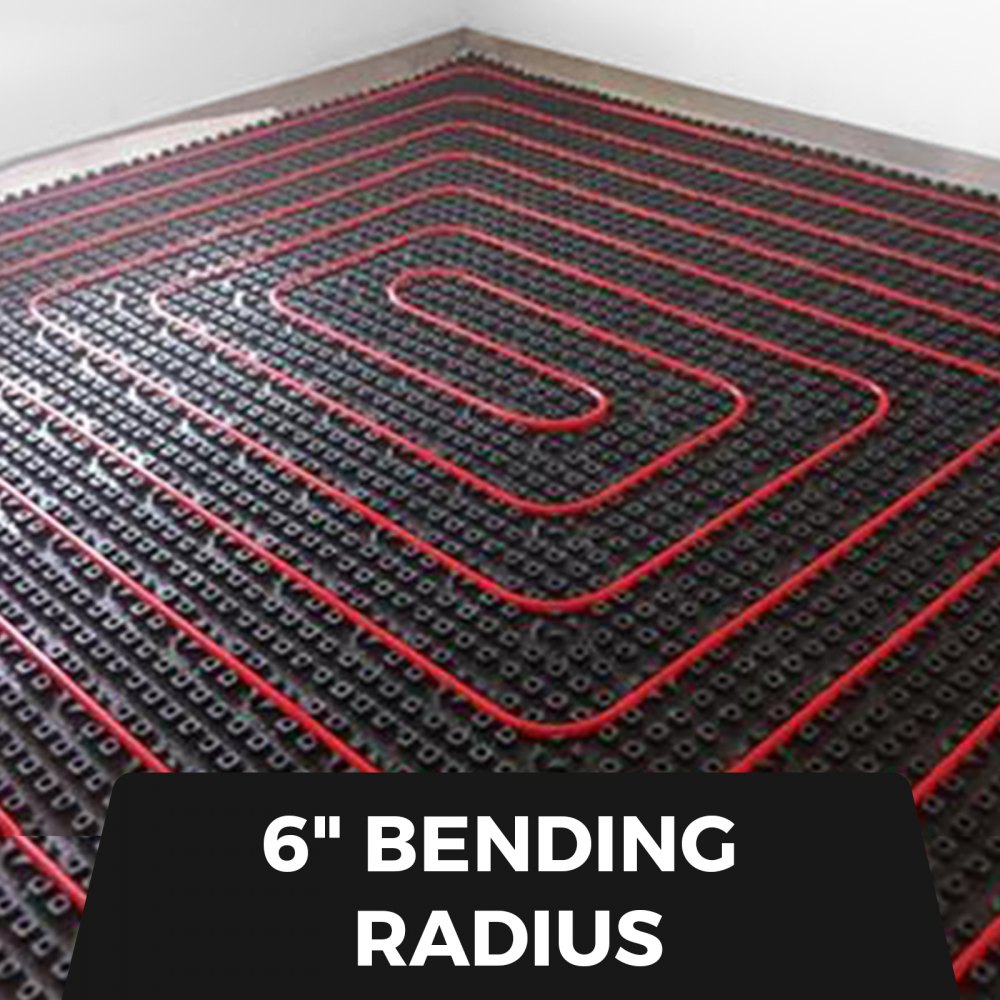

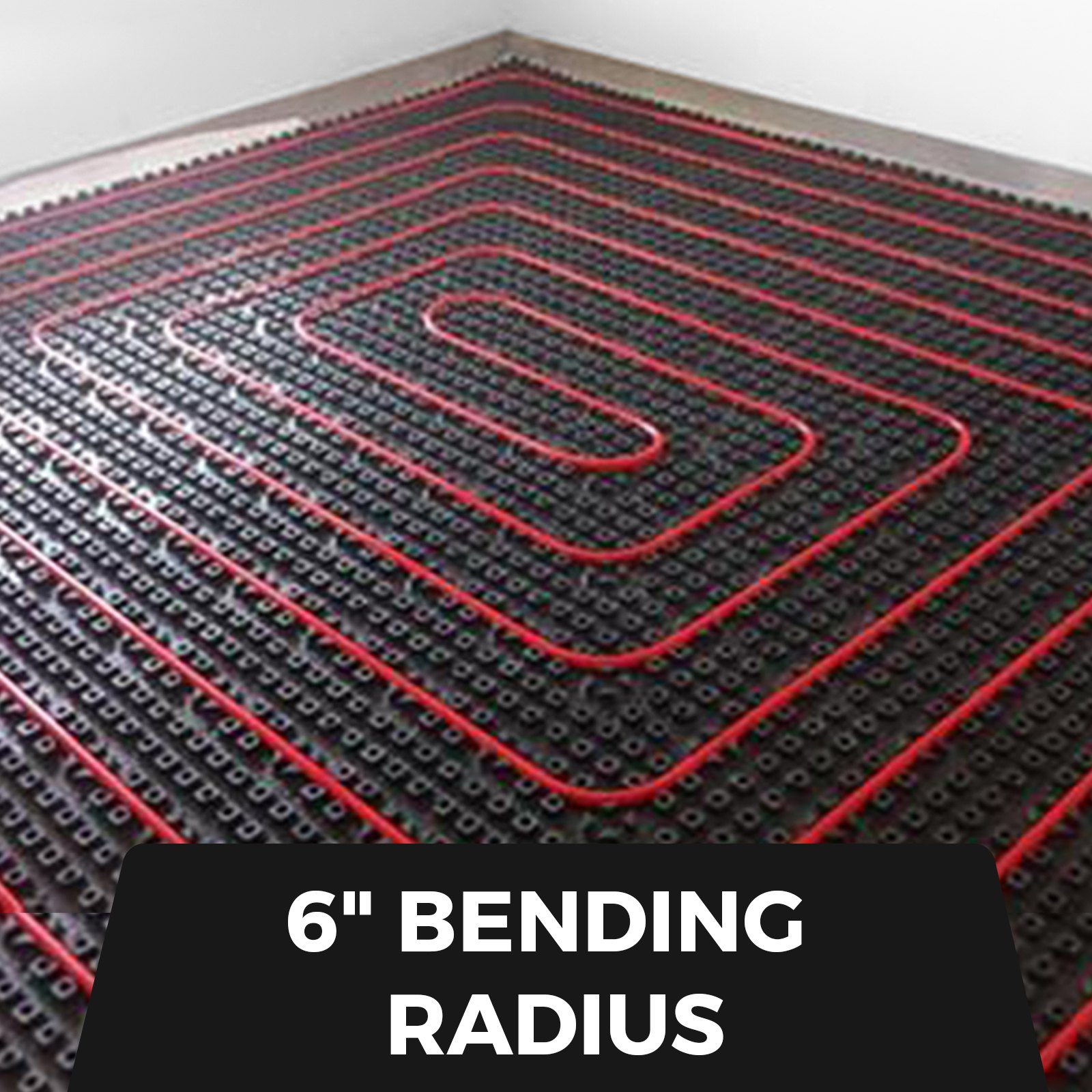

6" Bending Radius
Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.6" bending radius and excellent flexibility.

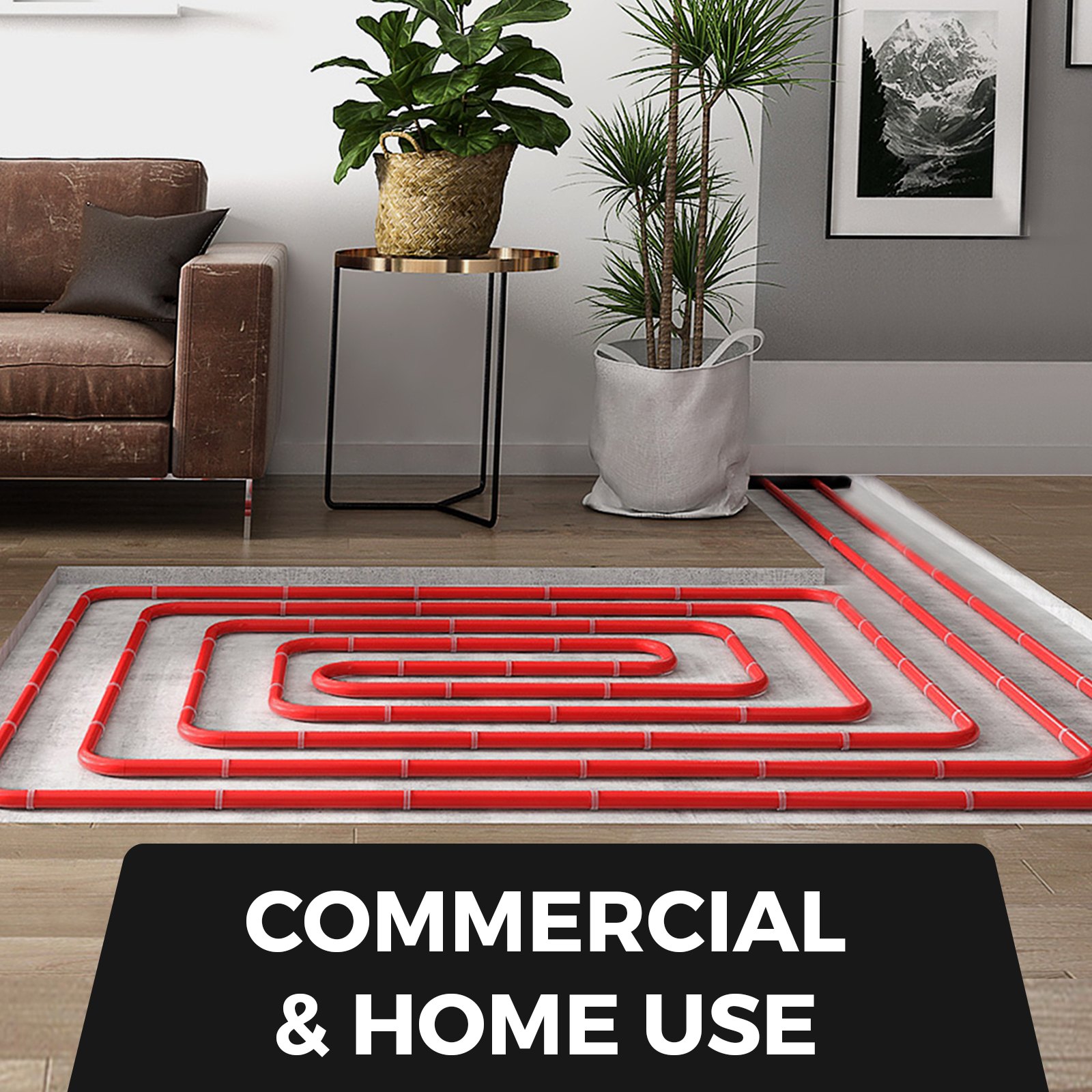

Commercial & Home Use
Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water transmission. Keep quick hot & cold water flows. Red color just for identification.
- Type: PEX Tube(Oxygen Barrier)
- Color: Red
- Total Length: 500FT
- Nominal Diameter: 5/8"
- Inside Diameter: 0.574"
- Outside Diameter: 0.750"
- Temperature Range: -45 to 110℃/ -47℉ to 230℉
- Pressure Rate: 188-217psi at 20℃; 101-108psi at 95℃
- Min. Bending Radius: 6"(Industry Standard for 5/8" PEX)
- ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
- UPC listed by IAPMO.
- SDR-9 dimensional standards.

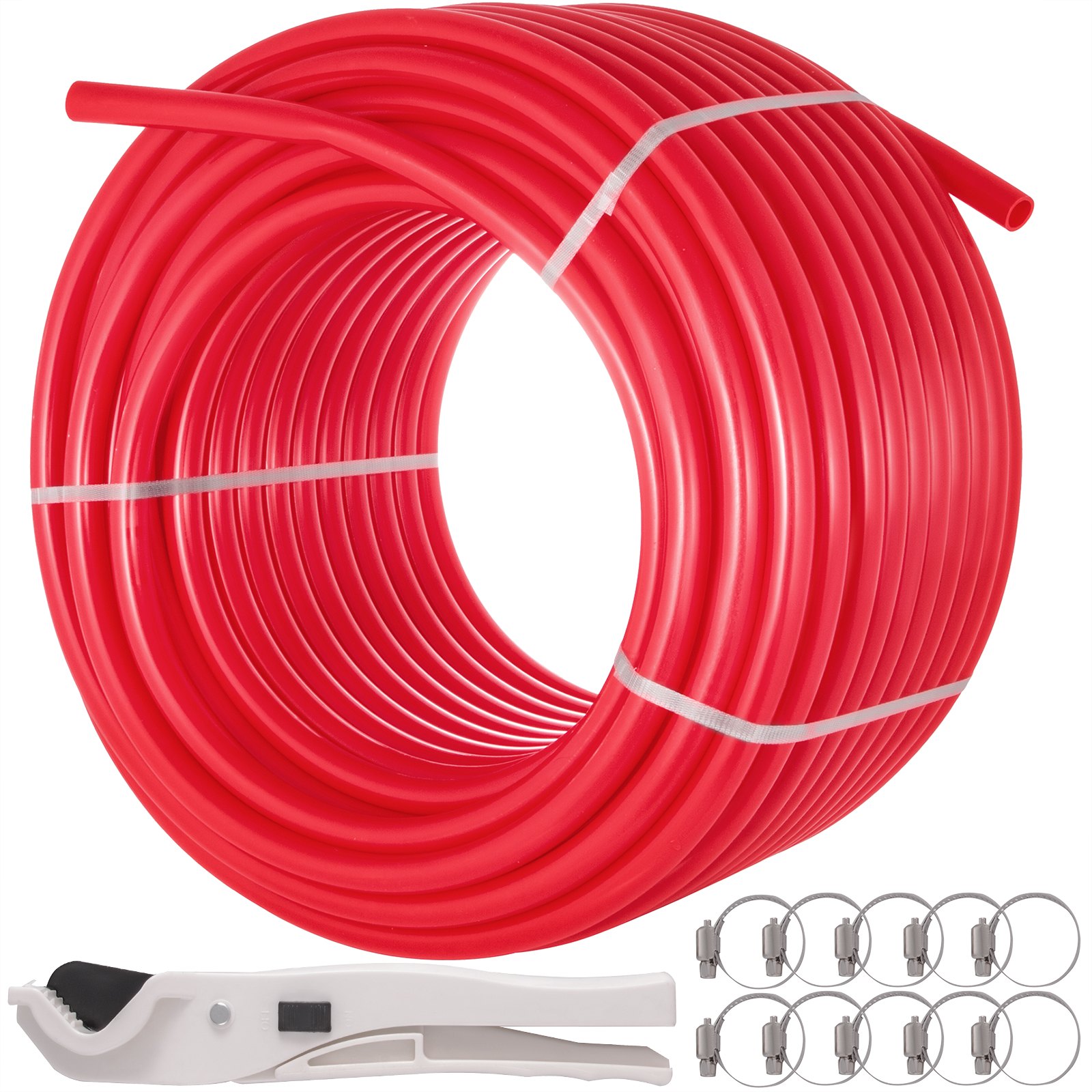

- 1 x 500FT 5/8" Oxygen Barrier PEX Tube
- 1 x PEX Pipe Cutter
- 10 x Clamp
Oxygen-Barrier PEX Pipe Tubing
This 5/8" 500ft PEX pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into the tubing system, thus to anti-rust and stop bacteria breeding. Higher flexibility, good temperature resistant, fast to install, crack-resistant and leakage-proof. Great PEX tube for home or commercial occasions.
- Standards, Certifications & Approvals
- ASTM F876: Standard specification for crosslinked polyethylene (PEX) tubing.
- ASTM F877: Standard specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
- ASTM F2023: Standard test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
- CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
- All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.
5/8” 500ft PEX Tube
Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 5/8"; Tube Length: 500ft, longer than normal products. This tube is marked with words every 5 ft length.
EVOH Oxygen Barrier
Crafted with a layer of EVOH for O2 barrier, keep oxygen and external elements from penetrating or corrode the metal components. Also, prevent the existence of germ in water.
Cuttable Pipe + Scissor
Professional PEX tubing cutter, an integral tool in the easy-to-install pipe connection system. For clean, straight cuts PEX tube size: 1000ft into various length.
10 Stainless Steel Clamp
Come with 10pcs stainless steel clamp, anti-rust & crack-resistant. Cooperate with screwdriver to help fix tubes and adjust tube tightness freely.
6" Bending Radius
Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.6" bending radius and excellent flexibility.
Commercial & Home Use
Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water transmission. Keep quick hot & cold water flows. Red color just for identification.
- 1 x 500FT 5/8" Oxygen Barrier PEX Tube
- 1 x PEX Pipe Cutter
- 10 x Clamp
- Type: PEX Tube(Oxygen Barrier)
- Color: Red
- Total Length: 500FT
- Nominal Diameter: 5/8"
- Inside Diameter: 0.574"
- Outside Diameter: 0.750"
- Temperature Range: -45 to 110℃/ -47℉ to 230℉
- Pressure Rate: 188-217psi at 20℃; 101-108psi at 95℃
- Min. Bending Radius: 6"(Industry Standard for 5/8" PEX)
- ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
- UPC listed by IAPMO.
- SDR-9 dimensional standards.
